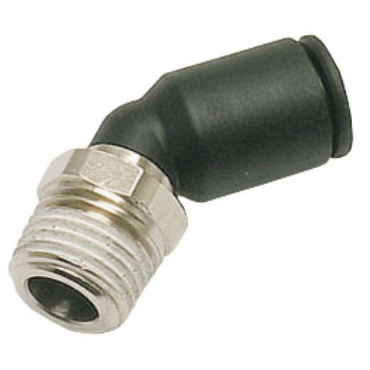

Legris 31136018 45 Male Elbow

Product Description

The Legris 31136018 is a 45-degree male elbow fitting designed for efficient connections in pneumatic and fluid systems. This fitting is ideal for use with three-eighths inch outer diameter tubing and features a three-eighths inch male NPT thread. Its robust construction allows for a maximum working pressure of two hundred ninety psi and a working temperature range from negative four degrees Fahrenheit to one hundred seventy-five degrees Fahrenheit.

• Fitting angle: 45 degrees
• Material: Nickel-Plated Brass
• Thread sealant pre-applied for secure fitting

Product Highlights

This elbow fitting allows for 360-degree rotation, making installation easier in tight spaces.

Product Information

Standard Information

• Fitting Description: 45 Male Elbow
• End Size: 3/8 Tube(f)

Technical Specifications

• Fitting Angle: 45 degrees
• No. of Ends: 2
• Body Material: Nickel-Plated Brass
• Overall Length: 0.910 inches
• Height: 1.360 inches
• Thread Size: 3/8
• Thread Type: NPT
• Origin: Plastic Push to Connect Fittings
• Weight: 0.05 LB
• EAN or UPC: 820099223544
