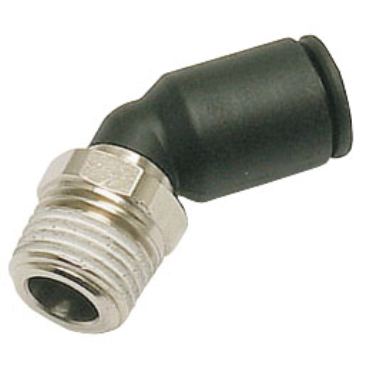

Legris 31131213 Push to Connect Fitting 45 Male Elbow 12 mm Tube x BSPT Threads

Product Description

The Legris 31131213 is a reliable push to connect fitting designed for efficient connections in fluid systems. This fitting features a 45-degree male elbow that allows for versatility in installation with twelve millimeter outer diameter tubing. It is compatible with quarter-inch BSPT threads to ensure secure connections for various applications.

• Max working pressure of 290 psi
• Working temperature range of -4 degrees Fahrenheit to 175 degrees Fahrenheit
• Vacuum rating of 28 Hg

Product Highlights

This fitting is designed for quick assembly and disassembly, thanks to its rotatable design and pre-applied thread sealant on tapered threads.

Product Information

Standard Information

• Brand: Legris
• Part Number: 31131213

Technical Specifications

• Size Type: Metric Tube x BSPT Threads
• End Types: Tubing & BSPT
• Material: Nylon body, nickel-plated brass base
• Overall Length: 26 mm
• Hex Size: 15 mm
• End Size: 12 mm Tube (f)
• Height: 44 mm
• Fitting Angle: 45 degrees
• Fitting Description: 45 degrees Male Elbow
• Number of Ends: 2
• Origin: Plastic Push to Connect Fittings
• Thread Size: 1/4
• Thread Type: BSPT
• Tube O.D.: 12 mm
• Weight: 0.157 lb
• EAN or UPC: 820099223339
