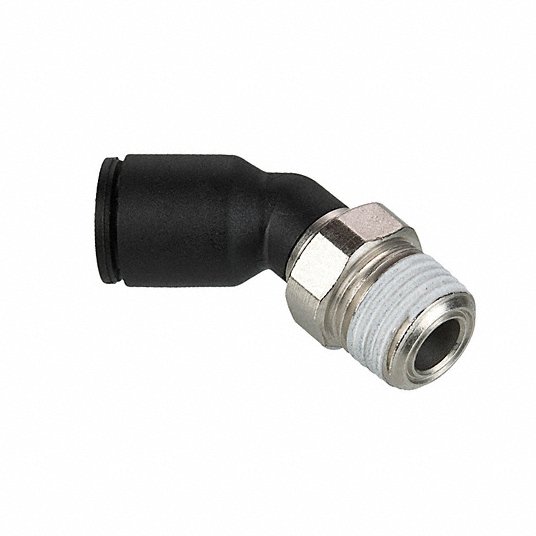

Legris 31131021 Push to Connect Fitting 45 Degree 10 mm O.D. Tubing 1/2 Male BSPT

Product Description

The Legris 31131021 is a push to connect fitting that allows for quick and secure connections in plumbing systems. It is designed for 10 mm O.D. tubing and features a 1/2 male BSPT connection. This fitting is ideal for use in various plumbing and HVAC applications.

• Max working pressure of 290 psi
• Works in temperatures from -4 °F to 175 °F
• 360° rotation for easy assembly

Product Highlights

This push to connect fitting is designed for reliability and versatility in fluid transfer systems.

Product Information

Standard Information

• Brand: Legris
• Part Number: 31131021

Technical Specifications

• Size Type: Metric Tube x BSPT Threads
• End Size: 10 mm Tube(f)
• Height: 40.500 mm
• Hex Size: 21 mm
• End Types: Tubing & BSPT
• Fitting Description: 45° Male Elbow
• No. of Ends: 2
• Material: Nylon body, nickel-plated brass base, pre-applied thread sealant on tapered thread
• Thread Type: BSPT
• Tube O.D.: 10.000 mm
• Thread Size: 1/2
• Origin: Plastic Push to Connect Fittings
• Fitting Angle: 45°
• Overall Length: 23 mm
• Weight: 0.074 LB
• EAN or UPC: 820099223308
