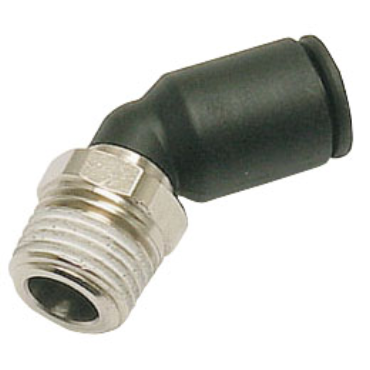

Legris 31130813 Push to Connect Fitting Power Each

Product Description

The Legris 31130813 is a push to connect fitting designed for efficient fluid transfer. This fitting features a 45° male elbow connection suitable for eight millimeter outer diameter tubing and quarter inch BSPT threads. It is built for high pressure and temperature applications.

• Max working pressure of 290 psi.
• Temperature range from -4 °F to 175 °F.
• Rotates 360° for ease of assembly.

Product Highlights

This fitting is ideal for HVAC and plumbing systems where reliable connections are necessary.

Product Information

Standard Information

• Brand: Legris
• MPN: 31130813

Technical Specifications

• End Types: Tubing & BSPT
• Thread Type: BSPT
• End Size: 5/16 in or 8 mm Tube
• Size Type: Metric Tube x BSPT Threads
• Thread Size: 1/4
• Body Material: Nickel-Plated Brass
• No. of Ends: 2
• Fitting Description: 45° Male Elbow
• Origin: Plastic Push to Connect Fittings
• Hex Size: 14 mm
• Overall Length: 19.5 mm
• Height: 33.500 mm
• Tube O.D.: 5/16 in, 8.000 mm
• Fitting Angle: 45°
• Weight: 0.039 LB
• EAN or UPC: 820099223162
