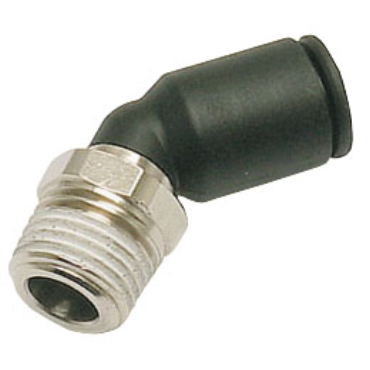

Legris 31130810 Push to Connect Fitting 45 Degrees 8 mm O.D. Tubing 1/8 Male BSPT

Product Description

The Legris 31130810 is a push-to-connect fitting designed for easy installation and reliable connections. This fitting is suitable for a variety of applications, particularly in fluid transfer systems. It facilitates a secure connection for eight millimeter outer diameter tubing and features a one-eighth male BSPT thread for versatile compatibility.

• Max working pressure of 290 psi
• Temperature range from -4 degrees Fahrenheit to 175 degrees Fahrenheit
• Rotates 360 degrees for convenient assembly

Product Highlights

The fitting is ideal for pneumatic and fluid systems. It includes a pre-applied thread sealant, which ensures a leak-proof connection. The nickel-plated brass construction provides durability and resistance to corrosion.

Product Information

Standard Information

• Brand: Legris
• Part Number: 102115411

Technical Specifications

• Fitting Description: 45 degrees male elbow
• No. of Ends: 2
• Overall Length: 19.5 mm
• Body Material: Nickel-Plated Brass
• End Types: Tubing & BSPT
• Size Type: Metric Tube x BSPT Threads
• Hex Size: 10 mm
• End Size: 5/16 or 8 mm tube
• Thread Type: BSPT
• Thread Size: 1/8
• Tube O.D.: 5/16 in, 8.000 mm
• Fitting Angle: 45 degrees
• Height: 33.500 mm
• Weight: 0.035 lb
• EAN or UPC: 820099223131
