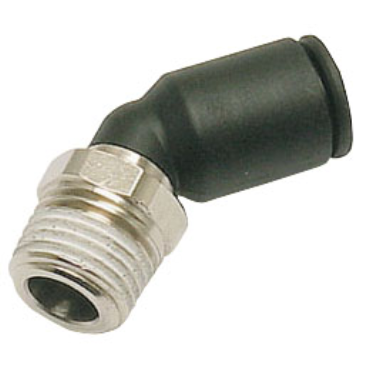

Legris 31130410 Push to Connect Fitting 290 psi 45 Degree Elbow

Product Description

The Legris 31130410 is a push to connect fitting designed for efficient tube connections in plumbing and HVAC systems. This fitting features a 45-degree male elbow suitable for four millimeter outer diameter tubing. It is built to handle a maximum working pressure of two hundred ninety psi and operates effectively within a temperature range of minus four degrees Fahrenheit to one hundred seventy-five degrees Fahrenheit.

• Max working pressure: 290 psi
• Working temperature: -4 °F to 175 °F
• Vacuum rating: 28 Hg

Product Highlights

This fitting comes with thread sealant pre-applied on tapered threads, ensuring a secure and leak-free connection. The ability to rotate three hundred sixty degrees allows for ease of assembly in tight spaces.

Product Information

Standard Information

• Brand: Legris
• MPN: 31130410

Technical Specifications

• Material: Nylon body, nickel-plated brass base
• Thread Type: BSPT
• Overall Length: 13 mm
• Hex Size: 10 mm
• End Types: Tubing & BSPT
• Height: 24.500 mm
• No. of Ends: 2
• Thread Size: 1/8
• Origin: Plastic Push to Connect Fittings
• End Size: 5/32 or 4 mm Tube(f)
• Fitting Angle: 45°
• Size Type: Metric Tube x BSPT Threads
• Tube O.D.: 4.000 mm, 5/32 in
• Fitting Description: 45° Male Elbow
• Weight: 0.017 LB
• EAN or UPC: 820099223025
