Legris 31096222 90 Male Elbow

Product Description

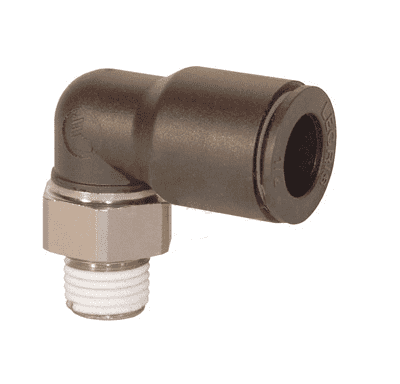

Legris 31096222 is a 90-degree male elbow fitting designed for connecting semirigid plastic tubing in pneumatic systems. This fitting features a robust construction with a body made from glass-filled nylon and nickel-plated brass threaded components. The buna-nitrile elastomer seals ensure a tight, leak-free connection with minimal effort. The patented stainless steel gripping ring securely holds the tubing in place. Each fitting includes a plastic release button that allows for easy connections and disconnections without the need for tools.

• Designed for use with 1/2 inch O.D. tubing
• Reusability enhances cost-effectiveness
• Compatible with nylon, polyurethane, polyethylene, or Teflon tubing

Product Highlights

Excellent for pneumatic applications where quick tubing connections are required.

Product Information

Standard Information

• Brand: Legris
• MPN: 31096222

Technical Specifications

• Tube O.D.: 1/2 inches
• No. of Ends: 2
• Height: 1 1/8 inches
• End Size: 1/2 Tube(f)
• End Types: Tubing & NPT
• Fitting Angle: 90 degrees
• Origin: Plastic Push to Connect Fittings
• Material: Nickel-Plated Brass
• Body Material: Nickel-Plated Brass
• Thread Size: 1/2
• Size Type: Fractional Sizes
• Thread Type: NPT
• Fitting Description: 90 degrees Male Elbow
• Hex Size: 24 mm
• Weight: 0.118 lb
• EAN or UPC: 820099222875
