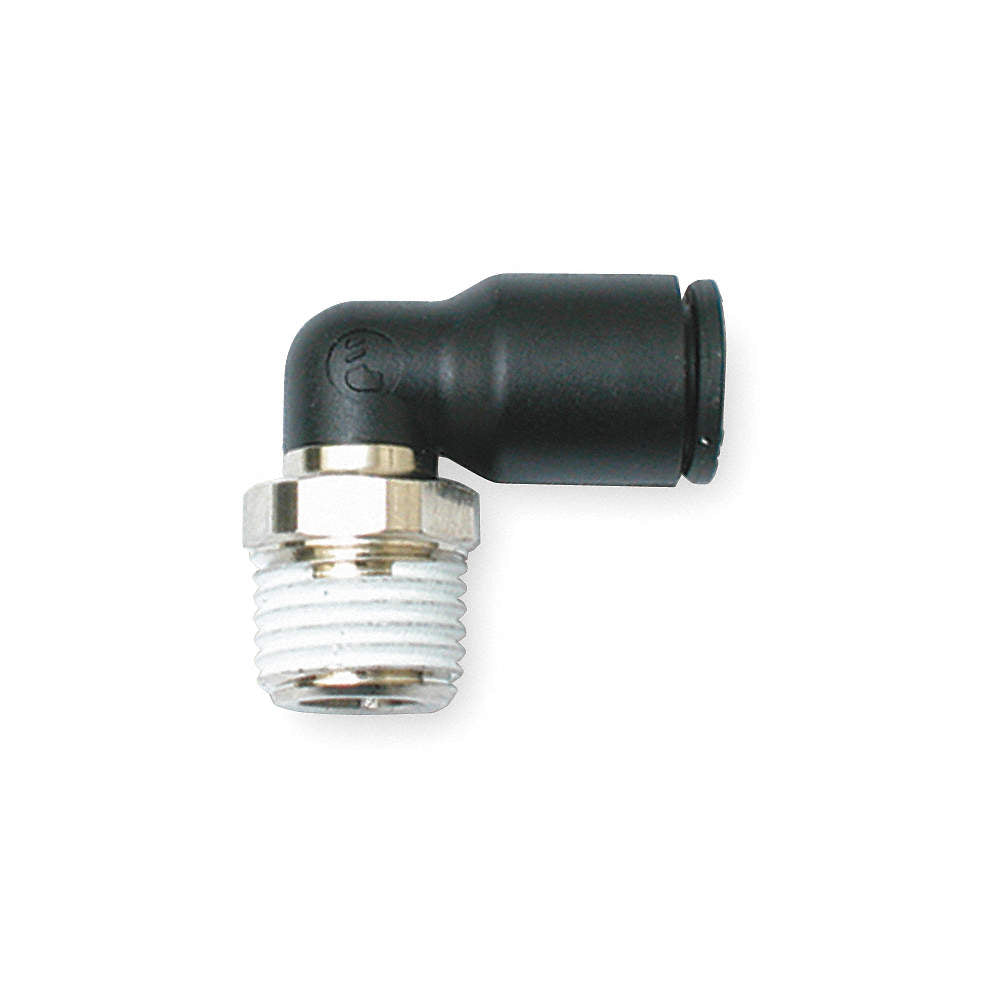

Legris 31095618 90 Male Elbow with 1/4 in Tube O.D. and 3/8 Thread NPT

Product Description

The Legris 31095618 is a 90 degree male elbow fitting suitable for connecting semirigid plastic tubing in pneumatic applications. This fitting features a body made from glass-filled nylon and nickel-plated brass for durability. The elastomer seals are buna-nitrile to ensure a reliable seal. The unique design allows for a tight, leak-free connection by pushing the tubing into the patented stainless steel gripping ring. The fitting includes a plastic release button for easy disconnection without tools.

• Suitable for 1/4 inch O.D. tubing
• 3/8 inch Male NPT threads
• Reusable and easy to connect or disconnect

Product Highlights

This fitting is ideal for HVAC and plumbing tasks that require secure connections in tight spaces. The elbow allows for smooth path adjustments in piping systems.

Product Information

Standard Information

• Brand: Legris
• MPN: 31095618

Technical Specifications

• Max working pressure: 290 psi
• Working temperature: -4 °F to 175 °F
• Vacuum rating: 28 Hg
• Rotation: 360° for ease of assembly
• Thread sealant: Pre-applied on tapered threads
• Material: Nickel-Plated Brass
• Hex size: 18 mm
• End types: Tubing & NPT
• Tube O.D.: 1/4 inch
• Origin: Plastic Push to Connect Fittings
• Weight: 0.049 lb
