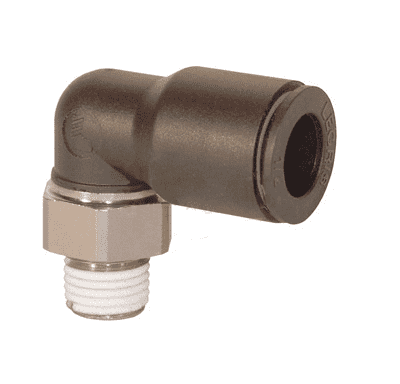

Legris 31095614 90 Degree Male Elbow

Product Description

Legris 31095614 is a 90 degree male elbow fitting designed for connecting 1/4 inch O.D. tubing with male NPT threads. This fitment is ideal for use in pneumatic applications. The elbow's construction features a durable glass-filled nylon body with nickel-plated brass threaded components. Elastomer seals made from buna-nitrile enhance the connection's reliability. The design allows for a secure, leak-free fitting by simply pushing the tube into the patented stainless steel gripping ring. A release button is included for easy connection and disconnection without the need for tools. The fitting is reusable and compatible with nylon, polyurethane, polyethylene, or Teflon tubes.

• Constructed from nickel-plated brass and glass-filled nylon
• Minimal installation effort required
• Suitable for a range of tubing materials

Product Highlights

This product is effective for connecting semirigid tubing in pneumatic systems. It offers a practical solution for applications requiring safe and efficient connections.

Product Information

Standard Information

• Brand: Legris
• MPN: 31095614

Technical Specifications

• End Size: 1/4 Tube(f)
• Body Material: Nickel-Plated Brass
• Thread Type: NPT
• Fitting Angle: 90 degrees
• Height: 0.630 inches
• Weight: 0.031 lbs
• Tube O.D.: 1/4 inches
• Vacuum Rating: 28 Hg
