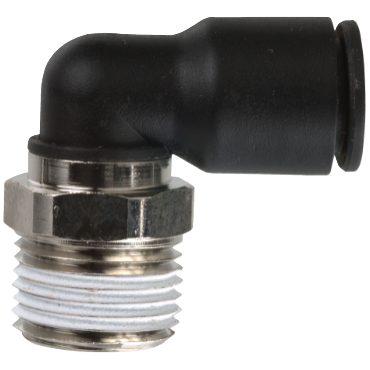

Legris 31091621 90 Male Elbow 16 mm Tube OD 1/2 BSPT Thread

Product Description

The Legris 31091621 is a 90-degree male elbow fitting designed for push-to-connect applications.

• Maximum working pressure of 290 psi
• Working temperature range from -4 degrees Fahrenheit to 175 degrees Fahrenheit
• Thread sealant pre-applied on tapered threads

Product Highlights

This elbow fitting rotates three hundred sixty degrees for easier assembly. It is suitable for applications requiring metric sizes, specifically a tube outer diameter of sixteen millimeters and a thread size of one half BSPT.

Product Information

Standard Information

• Brand: Legris
• Part Number: 31091621

Technical Specifications

• Fitting Angle: 90 degrees
• Size Type: Metric Sizes
• Tube Outer Diameter: 16.000 mm
• Body Material: Nickel-Plated Brass
• End Types: Tubing & BSPT
• Fitting Description: 90 degrees Male Elbow
• End Size: 16 mm Tube
• Thread Type: BSPT
• Material: Nickel-Plated Brass
• Number of Ends: 2
• Thread Size: 1/2
• Weight: 0.35 LB
• EAN or UPC: 820099994925
