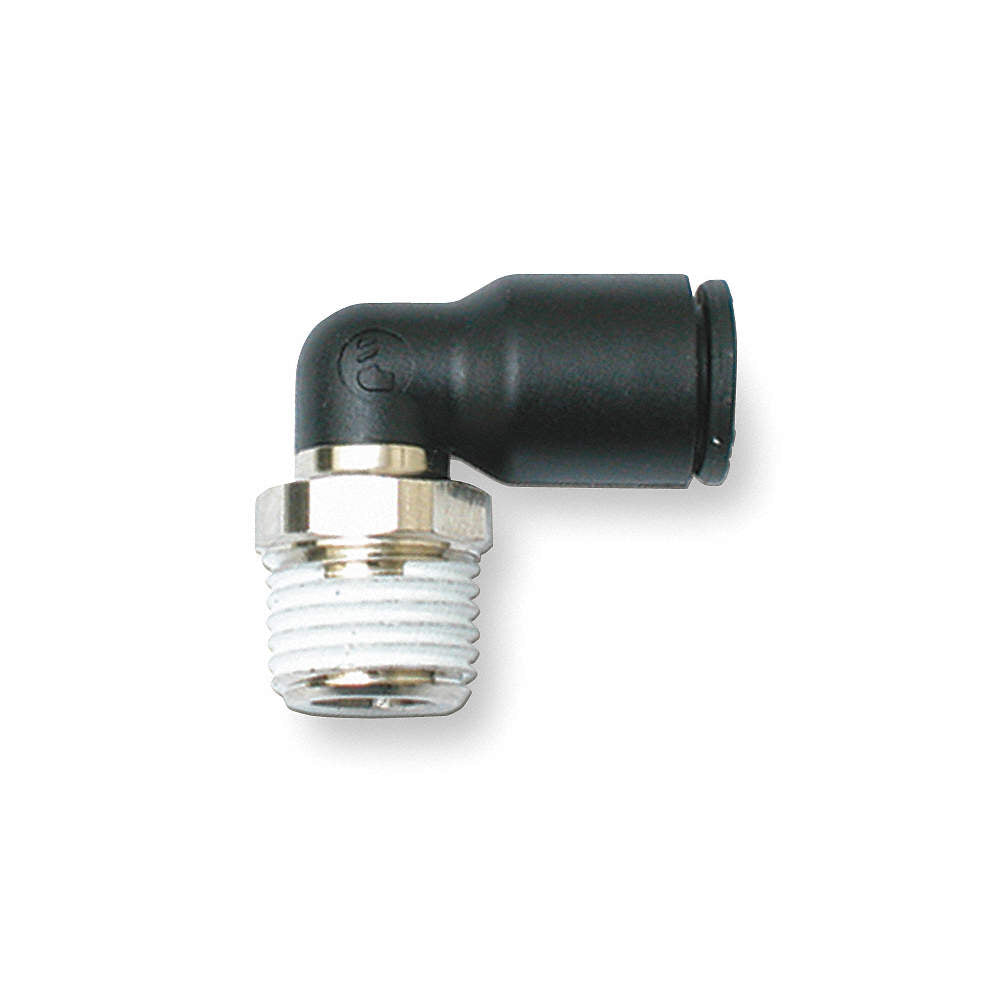

Legris 31091217 90 Male Elbow

Product Description

The Legris 31091217 is a 90 male elbow designed for use with twelve millimeter outer diameter tubing. This fitting is part of the LF3000 push-to-connect series, known for efficient connections in pneumatic systems. Made of glass-filled nylon and nickel-plated brass, it ensures a durable and reliable connection. The buna-nitrile elastomer seals contribute to a tight fit, preventing leaks. Easy to use, simply push the tubing into the patented stainless steel gripping ring. A standard plastic release button enables quick disconnects without tools, making it ideal for efficient installations.

• Compatible with nylon, polyurethane, polyethylene, or Teflon tubing
• Reusable and does not deform tubing
• Rotates 360 degrees for flexible assembly

Product Highlights

Designed for easy connections, this elbow fitting simplifies assembly without the need for tools.

Product Information

Standard Information

• Brand: Legris
• MPN: 31091217

Technical Specifications

• Max. working pressure: 290 psi
• Working temperature: -4 °F to 175 °F
• Vacuum rating: 28 Hg
• Fitting angle: 90 degrees
• End size: 12 mm tube (f)
• Body material: Nickel-plated brass
• Thread type: BSPT
• Weight: 0.163 lb
