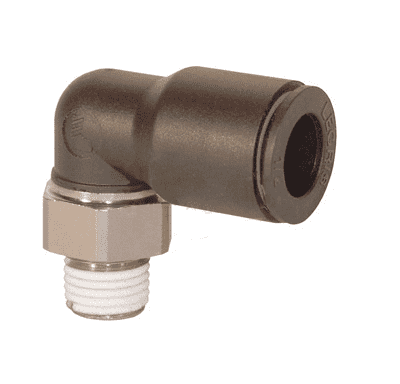

Legris 31090811 90 Male Elbow

Product Description

The Legris 31090811 is a 90-degree male elbow fitting designed for push-to-connect pneumatics, suitable for 5/16 inch or 8 mm outer diameter tubing. This fitting simplifies connections in pneumatic systems by using minimal effort, enabling quick assembly and disassembly.

• Constructed from nickel-plated brass for durability
• Compatible with nylon, polyurethane, polyethylene, or Teflon tubing
• Reusable design with a leak-free connection

Product Highlights

Max working pressure is 290 psi; operates within a temperature range from -4 degrees Fahrenheit to 175 degrees Fahrenheit.

Product Information

Standard Information

• Brand: Legris
• MPN: 31090811

Technical Specifications

• Material: Nickel-Plated Brass
• Fitting Angle: 90 degrees
• End Size: 5/16 or 8 mm Tube (female)
• Thread Size: 1/8
• Body Material: Nickel-Plated Brass
• Weight: 0.018 lb
• Vacuum Rating: 28 Hg
• Hex Size: 11 mm
