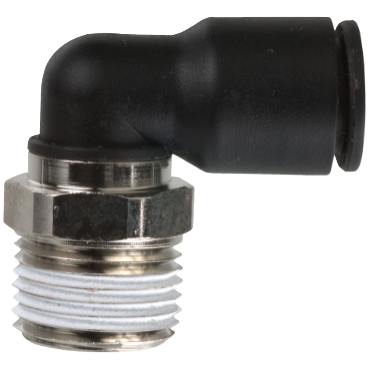

Legris 31090617 90 Degree Male Elbow

Product Description

Legris 31090617 is a 90-degree male elbow fitting designed for connecting 6 mm outer diameter tubing in pneumatic systems. The body is made of glass-filled nylon, providing strength and durability in diverse working environments. The nickel-plated brass threaded components and buna-nitrile elastomer seals ensure a reliable connection.

• Easy push-to-connect design
• Reusability and no tools required for disconnection
• Compatible with nylon, polyurethane, polyethylene, and Teflon tubing

Product Highlights

This fitting allows for quick and efficient connections while preventing leaks. It is suitable for a maximum working pressure of 290 psi, a temperature range from -4 °F to 175 °F, and offers a vacuum rating of 28 Hg. The fitting can rotate 360 degrees for installation ease, and thread sealant is pre-applied for added convenience.

Product Information

Standard Information

• Brand: Legris
• MPN: 31090617

Technical Specifications

• Thread Size: 3/8
• Origin: Plastic Push to Connect Fittings
• Size Type: Metric Sizes
• No. of Ends: 2
• Fitting Angle: 90 degrees
• Overall Length: 16.000 mm
• Thread Type: BSPT
• End Types: Tubing & BSPT
• Height: 16.000 mm
• Body Material: Nickel-Plated Brass
• End Size: 6 mm Tube(f)
• Material: Nickel-Plated Brass
• Tube O.D.: 6.000 mm
• Hex Size: 17 mm
• Weight: 0.035 LB
• EAN or UPC: 820099220468
