Legris 31090420 | 90° Male Elbow | Push-to-Connect Fittings

Product Description

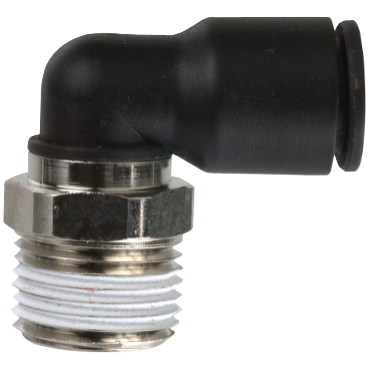

Legris 31090420 is a 90° Male Elbow designed for connecting semi-rigid plastic tubing in pneumatic systems. This fitting is particularly suitable for applications requiring minimal tools and labor. The body comprises durable glass-filled nylon, while the threaded parts are made from nickel-plated brass. The fitting utilizes buna-nitrile elastomer seals for leak-free connections.

• Max working pressure: 290 psi
• Working temperature range: -4 °F to 175 °F
• Rotates 360° for easy assembly

Product Highlights

This fitting connects nylon, polyurethane, polyethylene, or Teflon tubing securely without tools. The innovative design allows easy connection and disconnection with low force, enhancing productivity in any project.

Product Information

Standard Information

• Brand: Legris
• MPN: 31090420

Technical Specifications

• Hex Size: 8 mm
• End Size: 5/32 or 4 mm Tube(f)
• Fitting Description: 90° Male Elbow
• No. of Ends: 2
• Material: Nickel-Plated Brass
• Body Material: Glass-Filled Nylon
• Fitting Angle: 90°
• End Types: Tubing & UNF
• Height: 0.530 inches
• Tube O.D.: 4.000 mm, 5/32 inches
• Thread Type: UNF
• Size Type: Fractional Sizes
• Thread Size: #10-32
• Origin: Plastic Push to Connect Fittings
• Weight: 0.008 LB
• EAN or UPC: 820099220062
