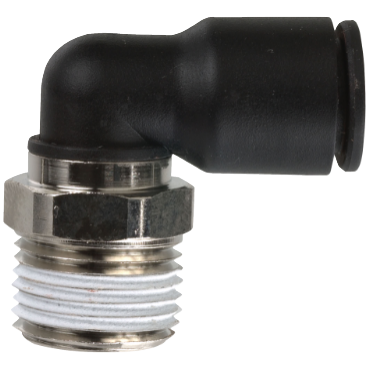

Legris 31090410 90 Male Elbow

Product Description

Legris 31090410 is a 90 degree male elbow fitting designed for use with 5/32 inch or 4 millimeter outer diameter tubing. This fitting is part of the LF3000 series of push-to-connect components, useful in pneumatic systems. The body is made from glass-filled nylon while the threaded parts are constructed of nickel-plated brass, ensuring durability. The elastomer seals are made of buna-nitrile which helps maintain a secure connection. This elbow allows for easy assembly by simply pushing the tubing into the stainless steel gripping ring. A plastic release button is included for simple disconnection without tools.

• Max working pressure: 290 psi
• Working temperature: -4 °F to 175 °F
• Rotates 360° for ease of installation

Product Highlights

This fitting is ideal for connecting semi-rigid plastic tubing in pneumatic applications.

Product Information

Standard Information

• Brand: Legris
• Part Number: 31090410

Technical Specifications

• Body Material: Nickel-Plated Brass
• Size Type: Metric Sizes
• Thread Type: BSPT
• Thread Size: 1/8
• Hex Size: 10 mm
• Fitting Angle: 90°
• Material: Nickel-Plated Brass
• End Types: Tubing & BSPT
• No. of Ends: 2
• Tube O.D.: 4.000 mm, 5/32 in
• Origin: Plastic Push to Connect Fittings
• Fitting Description: 90° Male Elbow
• Height: 13.500 mm
• End Size: 5/32 or 4 mm Tube(f)
• Weight: 0.013 LB
• EAN or UPC: 820099219783
