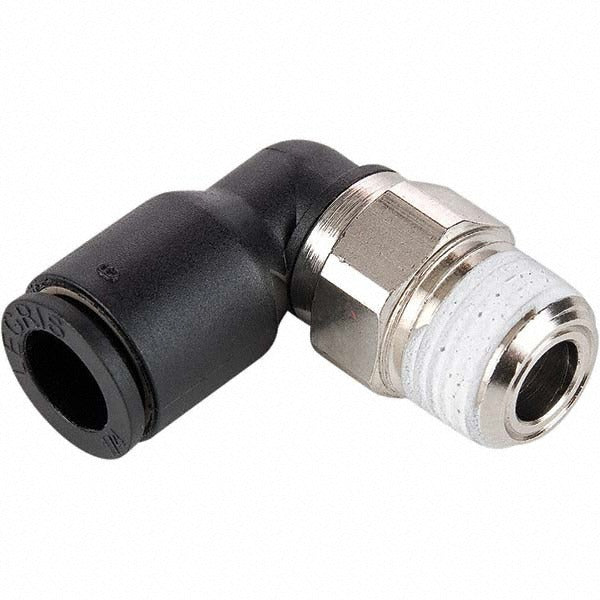

Legris 3109 16 17 90 Male Elbow Push-to-connect Bspt

Product Description

The LEGRIS 3109 16 17 is a push-to-connect 90-degree male elbow tube fitting designed for fast, tool-free connections in pneumatic and fluid transfer systems. It accepts 16mm outside diameter tubing on the push-in end and terminates in a male BSPT thread on the other. The body is glass-reinforced nylon with nickel-plated brass internal components and a nitrile O-ring seal. Rated to 290 psi maximum working pressure, it handles temperatures from -4 degrees F up to 290 degrees F. Licensed plumbers, pipefitters, and pneumatic system technicians are the typical installers. The compact one-piece construction simplifies field assembly in tight spaces.

This fitting is well suited for compressed air, pneumatic control lines, and compatible fluid systems in both industrial and commercial environments. The push-to-connect design allows tubing to be inserted and locked without tools, making it a practical choice for panel builds, manifold connections, and maintenance scenarios where rapid reconnection is required. The 90-degree elbow orientation is used where a straight fitting would create a bend radius violation or a routing conflict inside an enclosure or cabinet.

Key Features

• Push-to-connect design allows tool-free tube insertion and secure locking
• 90-degree male elbow routes tubing at a right angle to the thread axis
• Glass-reinforced nylon body with nickel-plated brass internals for corrosion resistance
• Nitrile O-ring seal suitable for air and many compatible fluid media
• 290 psi maximum working pressure with vacuum rating of 28 in-Hg
• Wide temperature range: -4 degrees F to 290 degrees F
• Compliant with RoHS, REACH, PED, and ISO 14743 standards

Compatibility

Designed for use with 16mm outside diameter tubing in push-to-connect pneumatic and fluid transfer systems using male BSPT threaded ports. Verify thread form and tubing OD before installation.

Installation Notes

Installation is typically performed by licensed pipefitters, pneumatic technicians, or plumbers depending on the application. De-energize and depressurize the system completely before disconnecting or installing any fitting. Confirm that the mating port thread form is BSPT and that tubing outside diameter is exactly 16mm for a proper seal. Follow applicable codes including ASME B31.1 or B31.3 for piping systems as appropriate to the installation.
