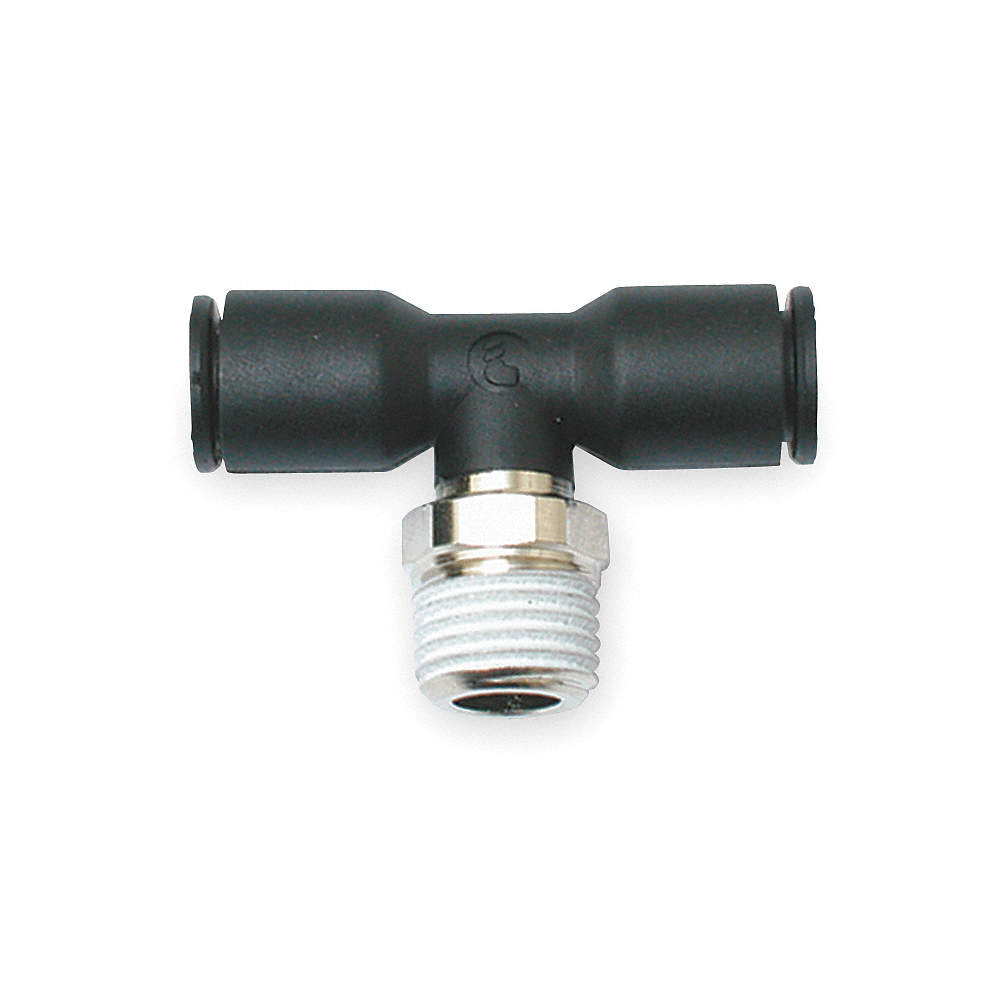

Legris 31086011 Male Branch Tee 290 psi 3/8 O.D. Tubing 3108 60 11

Product Description

The Legris Male Branch Tee with MPN 31086011 is designed for use with three eighths inch outer diameter tubing. It connects tubing efficiently while providing a threaded connection at one eighth inch NPT. This fitting enhances your plumbing or pneumatic system's flexibility and functionality.

• Connects to 3/8 inch O.D. tubing
• Threaded one eighth inch male NPT
• Allows rotation for easier assembly

Product Highlights

This fitting is built to handle a maximum working pressure of 290 psi and operates effectively within a temperature range of minus four degrees Fahrenheit to 175 degrees Fahrenheit.

Product Information

Standard Information

• Brand: Legris
• Part Number: 31086011

Technical Specifications

• Thread Size: 1/8
• No. of Ends: 3
• End Size: 3/8 Tube(f)
• Origin: Plastic Push to Connect Fittings
• Height: 0.990 inches
• Material: Nickel-Plated Brass
• End Types: Tubing & NPT
• Thread Type: NPT
• Body Material: Nickel-Plated Brass
• Fitting Angle: 90 degrees
• Tube O.D.: 3/8 inches
• Hex Size: 15 mm
• Weight: 0.051 lbs
• EAN or UPC: 820099219295
