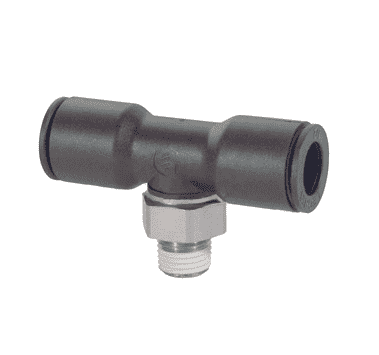

Legris 31085614 Male Branch Tee 1/4 O.D. Tubing 1/4 Male NPT

Product Description

The Legris Male Branch Tee with MPN 31085614 is designed for use with one-quarter inch outer diameter tubing. It features a one-quarter inch male NPT connection, ensuring compatibility with various plumbing applications.

• Maximum working pressure of 290 psi
• Working temperature range from -4 degrees Fahrenheit to 175 degrees Fahrenheit
• Vacuum rating of 28 inches of mercury

Product Highlights

This fitting rotates 360 degrees for easy installation. Thread sealant is pre-applied to the tapered threads to enhance leak prevention.

Product Information

Standard Information

• Brand: Legris
• Part Number: 31085614

Technical Specifications

• No. of Ends: 3
• Size Type: Fractional Sizes
• End Types: Tubing & NPT
• Thread Size: 1/4
• End Size: 1/4 Tube(f)
• Height: 0.630 inches
• Fitting Description: Male Branch Tee
• Hex Size: 1/4 inches
• Thread Type: NPT
• Fitting Angle: 90 degrees
• Body Material: Nickel-Plated Brass
• Material: Nickel-Plated Brass
• Origin: Plastic Push to Connect Fittings
• Tube O.D.: 1/4 inches
• Weight: 0.035 LB
• EAN or UPC: 820099219233
