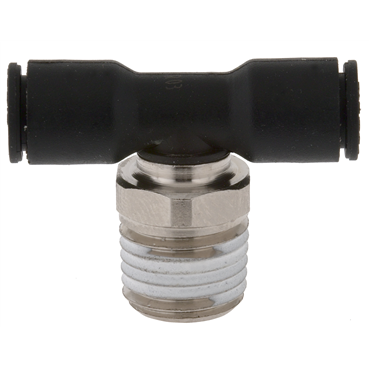

Legris 31081017 Male Branch Tee 290 psi 10 mm Tube x BSPT Threads

Product Description

The Legris 31081017 is a male branch tee designed for quick and reliable connections in pneumatic systems. This fitting features a maximum working pressure of two hundred ninety pounds per square inch and is built to handle temperatures from minus four degrees Fahrenheit to one hundred seventy-five degrees Fahrenheit.

• End size: 10 mm female tube
• Material: Nickel-plated brass
• Fitting angle: 90 degrees swivel

Product Highlights

The male branch tee allows for flexible positioning and easy assembly due to its 360-degree rotation capability.

Product Information

Standard Information

• Brand: Legris
• Part Number: 31081017

Technical Specifications

• End Size: 10 mm Tube(f)
• Material: Nickel-Plated Brass
• Thread Type: BSPT
• Thread Size: R3/8
• Fitting Angle: 90 degrees, Swivel
• Tube O.D.: 10.000 mm
• Hex Size: 17 mm
• Height: 24.000 mm
• No. of Ends: 2
• End Types: Tubing & BSPT
• Body Material: Nickel-Plated Brass
• Weight: 0.052 lb
• EAN or UPC: 820099218489
