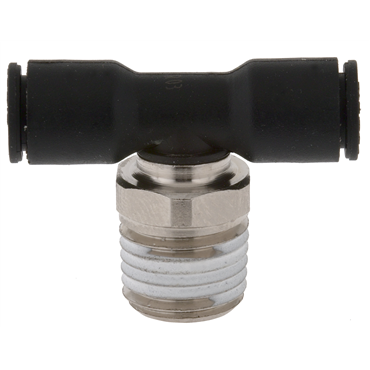

Legris 31081014 Male Branch Tee 290 psi 10 mm Tube Replacement 3108 10 14

Product Description

The Legris 31081014 Male Branch Tee fits into any push-to-connect system for easy installation. This fitting features a 90-degree angle and accommodates a ten millimeter tube outer diameter, making it suitable for various applications including HVAC and plumbing.

• Max. working pressure of 290 psi
• Temperature range from minus four degrees Fahrenheit to one hundred seventy-five degrees Fahrenheit
• Rotates three hundred sixty degrees for ease of assembly

Product Highlights

This male branch tee is designed with pre-applied thread sealant on tapered threads for leak prevention and reliability.

Product Information

Standard Information

• Brand: Legris
• Part Number: 31081014

Technical Specifications

• Max. Working Pressure: 290 psi
• Working Temperature: -4 °F to 175 °F
• Vacuum Rating: 28 Hg
• Material: Nickel-Plated Brass, Nylon
• Fitting Angle: 90°
• End Size: 10 mm Tube(f)
• Length: 1.040 in
• Height: 0.980 in
