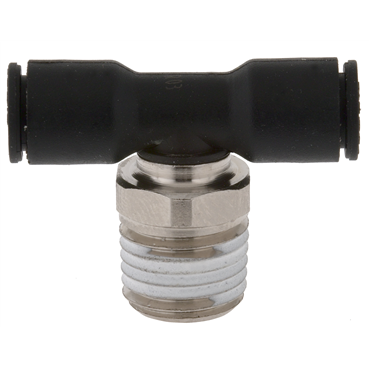

Legris 31080813 Male Branch Tee 290 psi 5/16 or 8 mm O.D. Tubing 1/4

Product Description

The Legris 31080813 Male Branch Tee is designed for use with 5/16 inch or 8 mm outer diameter tubing. It connects three lines with a threaded connection for reliable fluid transfer.

• Male branch tee for 5/16 or 8 mm tubing
• 1/4 male BSPT connection
• Max working pressure of 290 psi

Product Highlights

This fitting is ideal for various applications where a strong connection is required.

Product Information

Standard Information

• Brand: Legris
• MPN: 31080813

Technical Specifications

• Fitting Description: Male Branch Tee
• No. of Ends: 3
• Material: Nickel-Plated Brass
• Body Material: Nickel-Plated Brass
• Origin: Plastic Push to Connect Fittings
• Hex Size: 14 mm
• End Size: 5/16 or 8 mm Tube(f)
• Thread Size: 1/4
• Size Type: Metric Tube x BSPT Threads
• End Types: Tubing & BSPT
• Thread Type: BSPT
• Height: 21.000 mm
• Fitting Angle: 90°
• Tube O.D.: 5/16 in, 8.000 mm
• Weight: 0.041 LB
• EAN or UPC: 820099218175
