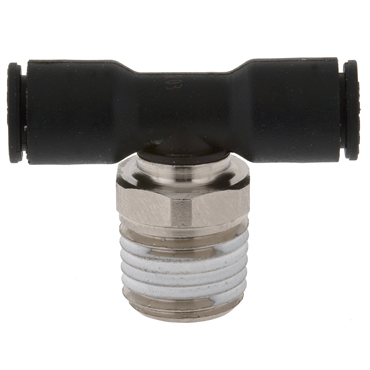

Legris 31080811 Male Branch Tee | 290 psi | 5/16 in | 1/8

Product Description

The Legris 31080811 Male Branch Tee is designed for use with five sixteenth inch or eight millimeter O.D. tubing. This fitting provides a reliable connection for fluid delivery systems.

• Max. working pressure: 290 psi
• Working temperature: -4 °F to 175 °F
• Vacuum rating: 28 Hg

Product Highlights

The fitting rotates three hundred sixty degrees for ease of assembly and comes with pre-applied thread sealant for straightforward installation.

Product Information

Standard Information

• Brand: Legris
• MPN: 31080811

Technical Specifications

• Tube O.D.: 5/16 in, 8.000 mm
• Body Material: Nickel-Plated Brass
• No. of Ends: 3
• Fitting Angle: 90°
• Hex Size: 11 mm
• End Types: Tubing & NPT
• Fitting Description: Male Branch Tee
• End Size: 5/16 or 8 mm Tube(f)
• Thread Type: NPT
• Thread Size: 1/8
• Material: Nickel-Plated Brass
• Size Type: Fractional Sizes
• Origin: Plastic Push to Connect Fittings
• Height: 0.870 mm
• Weight: 0.03 LB
• EAN or UPC: 820099218144
