Legris 31080810 Male Branch Tee 290 psi (each) Replacement MPN

Product Description

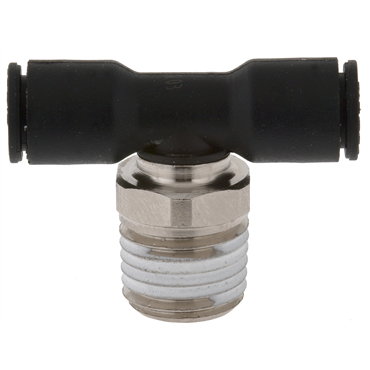

Legris 31080810 is a male branch tee designed for 5/16 inch or 8 mm outer diameter tubing and features a 1/8 male BSPT thread. It supports a maximum working pressure of 290 psi and operates effectively in temperatures ranging from -4 degrees Fahrenheit to 175 degrees Fahrenheit.

• Max working pressure: 290 psi
• Temperature range: -4 °F to 175 °F
• 360-degree rotation for easy assembly

Product Highlights

This product is suitable for multiple applications involving tubing connections where reliability and efficiency are essential.

Product Information

Standard Information

• Brand: Legris
• MPN: 31080810

Technical Specifications

• Height: 22 mm
• Fitting Description: Male Branch Tee
• End Types: Tubing & BSPT
• End Size: 5/16 or 8 mm Tube (f)
• Fitting Angle: 90 degrees
• Thread Type: BSPT
• Tube O.D.: 5/16 inches, 8 mm
• Body Material: Nickel-Plated Brass
• Size Type: Metric Tube x BSPT Threads
• Thread Size: 1/8
• Hex Size: 10 mm
• No. of Ends: 3
• Weight: 0.035 LB
• EAN or UPC: 820099218076
