Legris 31061214 Push to Connect Fitting 290 psi 12 mm to 14 mm

Product Description

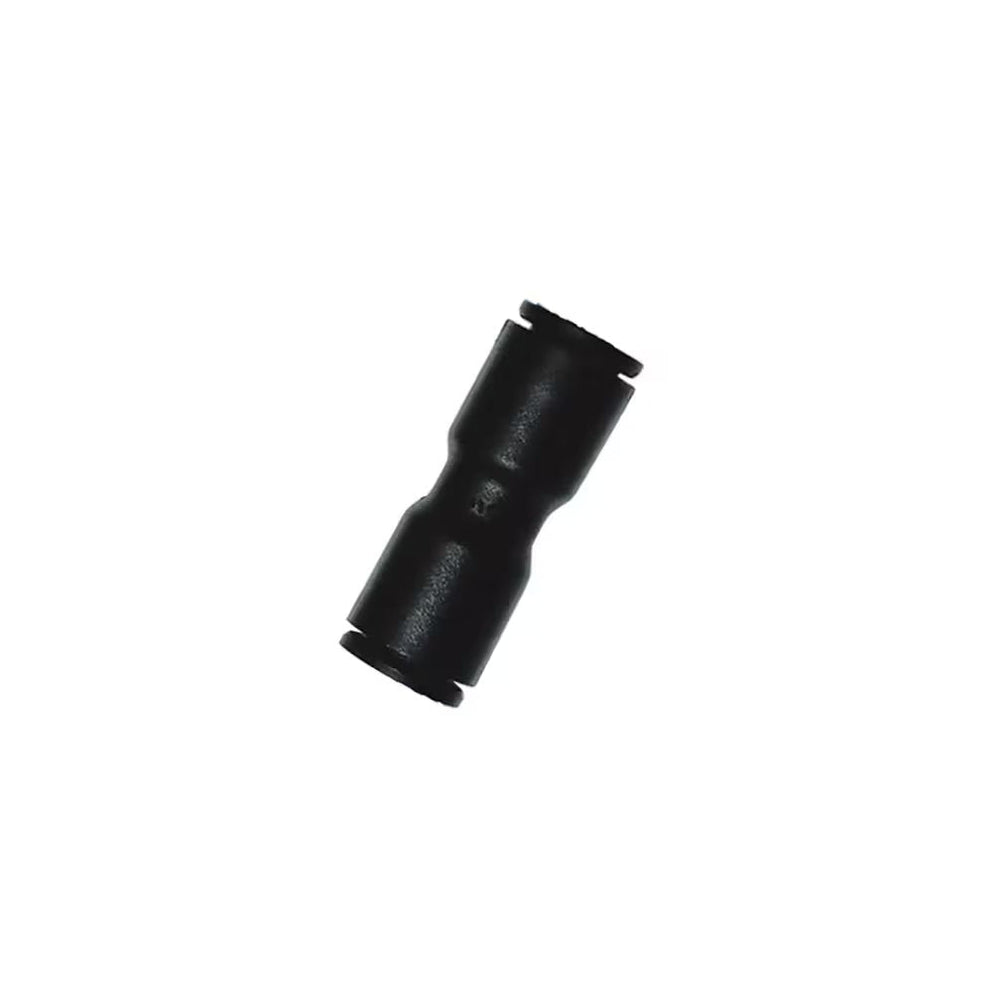

Legris 31061214 is a push-to-connect fitting designed for semirigid plastic tubing in pneumatic systems. It connects tubing with outer diameters of twelve millimeters and fourteen millimeters. The fitting features a nylon body and brass threaded components, ensuring a robust and reliable connection.

• Easy installation without tools
• Reusable design
• Compatible with various tubing materials

Product Highlights

Legris push-to-connect fittings provide a leak-free connection by simply pushing the tubing into the fitting. The patented stainless steel gripping ring secures the fit. A plastic release button allows for quick disconnection with minimal effort.

Product Information

Standard Information

• Brand: Legris
• Part Number: 31061214

Technical Specifications

• Fitting Angle: Straight
• Fitting Description: Straight Union
• Tube O.D. 1: 12 mm
• Tube O.D. 2: 14 mm
• Material: Nylon Body
• Overall Length: 56 mm
• End Types: Tubing
• End Size: 12 mm Tube(f)
• No. of Ends: 2
• Size Type: Metric, Unequal Ends
• Origin: Plastic Push to Connect Fittings
• Weight: 0.052 LB
• EAN or UPC: 820099216782
