Legris 31060608 Straight Union

Product Description

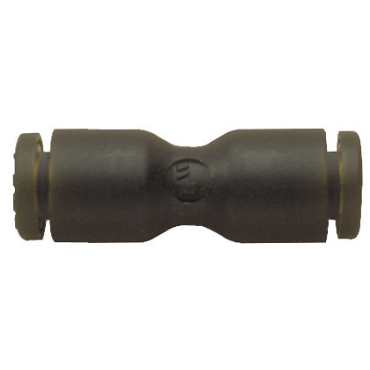

The Legris 31060608 is a straight union fitting designed for connecting tubing. It allows for seamless transitions from 6 millimeter outer diameter tubing to either 5/16 inch or 8 millimeter tubing. This product provides versatility for various piping applications.

• Supports a maximum working pressure of 290 psi.
• Operating temperature range from -4 degrees Fahrenheit to 175 degrees Fahrenheit.
• Vacuum rating of 28 inches of Mercury.

Product Highlights

The straight union fitting is an essential component for connecting different sizes of tubing securely.

Product Information

Standard Information

• Brand: Legris
• Part Number: 31060608

Technical Specifications

• Fitting Angle: Straight
• Overall Length: 38 millimeters
• No. of Ends: 2
• End Size: 6 mm Tube(f)
• Size Type: Metric, Unequal Ends
• Tube O.D. 2: 8 mm, 5/16 inch
• End Types: Tubing
• Origin: Plastic Push to Connect Fittings
• Material: Nylon Body
• Tube O.D. 1: 6 mm
• Fitting Description: Straight Union
• Body Material: Nylon
• Weight: 0.026 LB
• EAN or UPC: 820099215624
