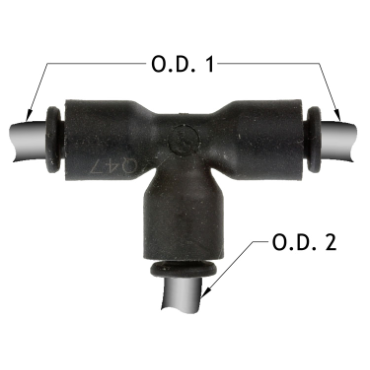

Legris 31041400 Union Tee 14MM O.D. N/A

Product Description

Legris 31041400 is a union tee fitting designed for fourteen millimeter outside diameter tubing. This push-to-connect fitting simplifies connections for pneumatic applications, enhancing efficiency and reducing installation time.

• Constructed from glass-filled nylon and nickel-plated brass
• Pressure rating of 290 psi
• Compatible with nylon, polyurethane, polyethylene, or Teflon tubing

Product Highlights

The Legris union tee fitting provides a secure and leak-free connection without the need for tools. The push-to-connect design allows for quick and easy installation. It is ideal for various pneumatic system setups.

Product Information

Standard Information

• Brand: Legris
• Part Number: 31041400

Technical Specifications

• Max. Working Pressure: 290 psi
• Working Temperature: -4 °F to 175 °F
• Vacuum Rating: 28 Hg
• Material: Nylon Body
• Fitting Angle: 90°
• No. of Ends: 3
• End Types: Tubing
• End Size: 14 mm Tube(f)
• Height: 46 mm
• Weight: 0.147 lb
• EAN or UPC: 820099213965
