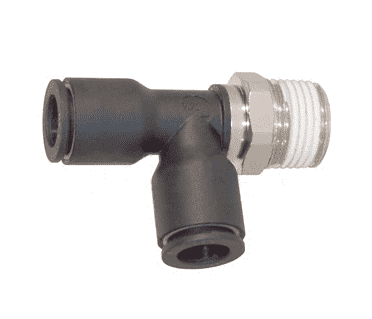

Legris 31036222 Male Run Tee 1/2 NPT x 1/2 Tubing

Product Description

Legris 31036222 is a male run tee fitting designed for connecting semirigid plastic tubing in pneumatic systems. This fitting is part of the LF3000 series and is built for efficient assembly with minimal effort. It features a body made from glass-filled nylon and nickel-plated brass components for durability. The buna-nitrile elastomer seals ensure a leak-tight connection. Users can easily connect or disconnect the tubing by pushing it into the stainless steel gripping ring. The integrated release button allows for simple operation without requiring tools.

• Easy push-to-connect design
• Reusable fitting with no deformation of the tubing
• Compatible with nylon, polyurethane, polyethylene, and Teflon tubing

Product Highlights

Legris fittings are suitable for various pneumatic applications, providing reliable connections and ease of use.

Product Information

Standard Information

• Brand: Legris
• Part Number: 31036222

Technical Specifications

• Max. Working Pressure: 290 psi
• Working Temperature: -4 °F to 175 °F
• Vacuum Rating: 28 Hg
• Rotates: 360° for ease of assembly
• Thread Sealant: Pre-applied on tapered threads
• No. of Ends: 3
• Body Material: Nickel-Plated Brass
• Fitting Description: Male Run Tee
• Fitting Angle: 90°
• End Types: Tubing & NPT
• Thread Type: NPT
• End Size: 1/2 Tube(f)
• Tube O.D.: 1/2 in
• Weight: 0.137 LB
• EAN or UPC: 820099212081
