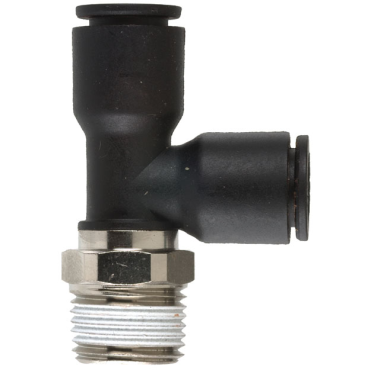

Legris 31030813 Push to Connect Fitting

Product Description

Legris 31030813 is a push-to-connect fitting designed for pneumatic applications. It provides a reliable way to connect semirigid plastic tubing using minimal labor and time. The body is made of glass-filled nylon, ensuring durability. Nickel-plated brass is used for threaded components, and buna-nitrile elastomer seals ensure leak-free connections. Users can easily connect or disconnect tubing by pushing it into the patented stainless steel gripping ring. The design features a plastic release button, requiring no tools and minimal force for operation. This fitting does not deform the tubing and is reusable, making it a practical choice for various tasks. Compatible with nylon, polyurethane, polyethylene, and Teflon tubing.

• Max. working pressure: 290 psi
• Working temperature: -4 °F to 175 °F
• Vacuum rating: 28 Hg

Product Highlights

This fitting allows 360° rotation for ease of assembly, making installation straightforward.

Product Information

Standard Information

• Brand: Legris
• Product Name: Push to Connect Fitting

Technical Specifications

• Material: Nylon body, nickel-plated brass base
• Height: 34 mm
• Tube O.D.: 5/16 in, 8 mm
• Fitting Description: Male Run Tee
• Thread Size: 1/4 BSPT
• Fitting Angle: 90°
• No. of Ends: 3
• Weight: 0.041 lb
• EAN or UPC: 820099210858
