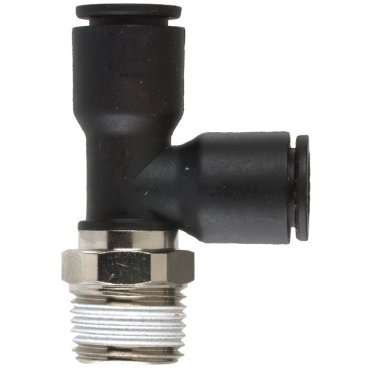

Legris 31030420 Male Run Tee Push-to-Connect Fitting 90 Degree 5/32 in

Product Description

Legris 31030420 Male Run Tee is a push-to-connect fitting designed for quick and easy connections in pneumatic applications. It is constructed from glass-filled nylon with nickel-plated brass threaded components, ensuring durability and strength. The buna-nitrile seals create a tight, leak-free connection, making this fitting suitable for various tubing materials such as nylon, polyurethane, and Teflon.

• Max working pressure of 290 psi
• Working temperature range of -4°F to 175°F
• Easy assembly with 360° rotation

Product Highlights

This fitting is designed for minimal labor and no tools required for connection or disconnection. It is reusable and does not deform tubing.

Product Information

Standard Information

• Brand: Legris
• Type: Male Run Tee

Technical Specifications

• Length: 0.570 inches
• Height: 1.020 inches
• Material: Nickel-Plated Brass, Nylon
• Fitting Angle: 90°
• Thread Size: 10-32
• Number of Ends: 3
• Tube O.D.: 5/32 inches
• Hex Size: 8 mm
