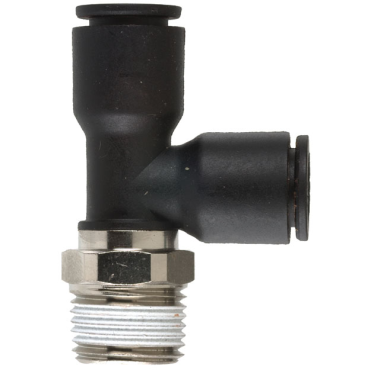

Legris 31030413 Push to Connect Fitting - 1/4 BSPT x 4 mm Tubing

Product Description

Legris 31030413 is a push-to-connect fitting designed for semirigid plastic tubing in pneumatic systems. This fitting is built with a body made from glass-filled nylon, while the threaded parts are made from nickel-plated brass. Buna-nitrile elastomer seals provide a reliable connection. The patented stainless steel gripping ring ensures a secure, leak-free fit by simply pushing the tubing into place. Disconnection is straightforward thanks to a plastic release button. Tools are not needed for installation or removal, making this fitting user-friendly.

• Low force required for connections and disconnections
• Reusable fittings without deforming the tubing
• Compatible with nylon, polyurethane, polyethylene, or Teflon tubing

Product Highlights

This fitting features a maximum working pressure of 290 psi, pre-applied thread sealant, and the ability to rotate 360 degrees. It operates effectively in temperatures from -4 degrees Fahrenheit to 175 degrees Fahrenheit and has a vacuum rating of 28 inches of mercury.

Product Information

Standard Information

• Brand: Legris
• Part Number: 31030413

Technical Specifications

• Origin: Plastic Push to Connect Fittings
• Fitting Angle: 90 degrees
• Thread Type: BSPT
• Thread Size: 1/4
• End Types: Tubing & BSPT
• Tube O.D.: 4.000 mm, 5/32 in
• No. of Ends: 3
• Material: Nylon body, nickel-plated brass base, pre-applied thread sealant on tapered thread
• Hex Size: 14 mm
• Height: 24.000 mm
• Size Type: Metric Tube x BSPT Threads
• End Size: 5/32 or 4 mm Tube(f)
• Fitting Description: Male Run Tee
• Weight: 0.022 LB
• EAN or UPC: 820099210537
