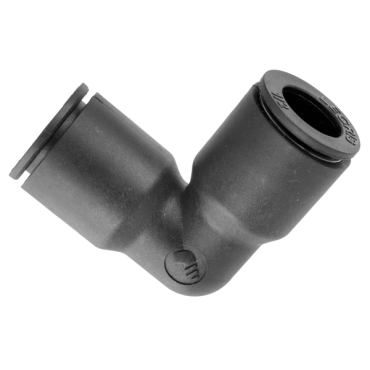

Legris 31025300 90 Degree Union Elbow Fitting for 1/8 O.D. Tubing

Product Description

Legris 31025300 is a 90-degree union elbow fitting designed for connecting 1/8 inch O.D. tubing in various pneumatic applications. This fitting utilizes a push-to-connect design that simplifies installation with minimal labor. The body features strong glass-filled nylon, while the threaded parts are made from nickel-plated brass. Buna-nitrile elastomer seals are used for a leak-free connection.

• Easy installation: connect tubing by pushing it into the stainless steel gripping ring.
• Reusable design: fittings can be disconnected and reused without damaging the tubing.
• Compatible with multiple tubing materials: nylon, polyurethane, polyethylene, and Teflon.

Product Highlights

Legris fittings are known for their reliable performance in pneumatic systems. This elbow allows for quick changes in direction while ensuring secure connections.

Product Information

Standard Information

• Manufacturing Material: Nylon
• Fitting Angle: 90 degrees

Technical Specifications

• Maximum Working Pressure: 290 psi
• Temperature Range: -4 °F to 175 °F
• Vacuum Rating: 28 Hg
• Overall Length: 3/4 inch
• End Size: 1/8 Tube(f)
• No. of Ends: 2
• UPC: 820099210216
