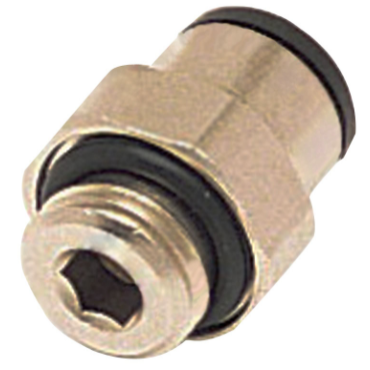

Legris 31011217 Male Connector 290 psi 12mm O.D. Tubing 3/8

Product Description

The Legris 31011217 is a male connector designed for 12 millimeter outer diameter tubing. This connector features a pre-applied thread sealant on tapered threads. It is made from nickel-plated brass and is suitable for various applications in pneumatic systems.

• Compatible with 12mm O.D. tubing
• Max working pressure: 290 psi
• Temperature range: -4 °F to 175 °F

Product Highlights

This male connector is ideal for tight spaces due to its internal hex design, facilitating easy assembly. It maintains functionality in a range of temperatures and pressures, making it versatile in many environments.

Product Information

Standard Information

• Brand: Legris
• Part Number: 31011217

Technical Specifications

• No. of Ends: 2
• Thread Type: BSPP
• Material: Nickel-Plated Brass
• Height: 1.063 inches
• Body Material: Nickel-Plated Brass
• Origin: Plastic Push to Connect Fittings
• Fitting Description: Male Connector
• Tube O.D.: 12.000 mm
• End Size: 12 mm Tube(f)
• Size Type: Metric Tube x BSPP Threads
• Hex Size: 20 mm
• Fitting Angle: Straight
• End Types: Tubing & BSPP
• Thread Size: 3/8
• Weight: 0.064 LB
• EAN or UPC: 820099656212
