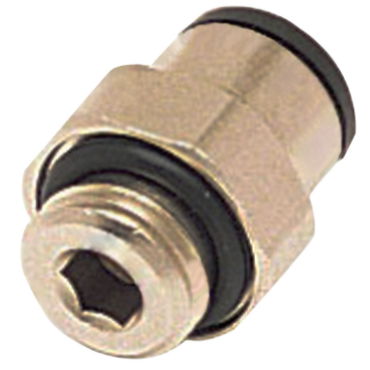

Legris 31011213 Male Connector 290 psi 12mm O.D. tubing

Product Description

The Legris 31011213 Male Connector is designed for use with twelve millimeter outer diameter tubing. This component features an internal hex for easy assembly, making it suitable for tight spaces. The connector operates efficiently under a maximum working pressure of two hundred ninety psi and supports a working temperature range from negative four degrees Fahrenheit to one hundred seventy-five degrees Fahrenheit.

• Compatible with twelve millimeter O.D. tubing
• 1/4 male BSPP thread for secure connections
• Vacuum rating of twenty-eight inches of mercury

Product Highlights

This male connector is ideal for applications requiring reliable connections in pneumatic systems.

Product Information

Standard Information

• Part Number: 31011213
• Brand: Legris

Technical Specifications

• Height: twenty-seven point five millimeters
• Thread Size: one fourth inch
• Tube O.D.: twelve millimeters
• Fitting Angle: straight
• Origin: plastic push to connect fittings
• Number of Ends: two
• End Size: twelve millimeter tube (female)
• Body Material: nickel-plated brass
• End Types: tubing and BSPP
• Fitting Description: male connector
• Size Type: metric tube x BSPP threads
• Hex Size: nineteen millimeters
• Thread Type: BSPP
• Weight: zero point zero six pounds
• EAN or UPC: 820099207889
