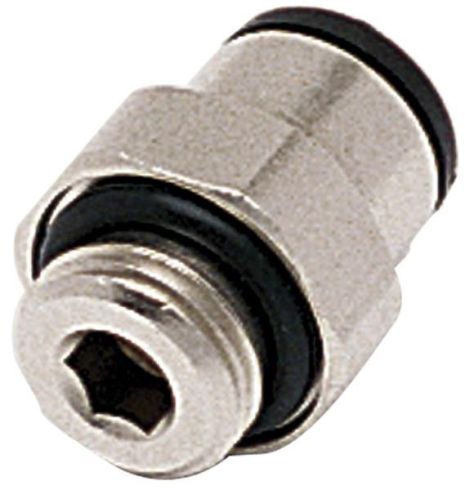

Legris 31010810 Male Connector 1/8 Male BSPP 5/16 Tube

Product Description

The Legris 31010810 is a male connector designed for eight millimeter outer diameter tubing. This component features a one eighth male British Standard Pipe Parallel (BSPP) thread, allowing efficient and secure connections. It is compatible with both tubing and BSPP fittings.

• Internal hex design for easy assembly in tight spaces
• Maximum working pressure of two hundred ninety psi
• Operating temperature range from negative four degrees Fahrenheit to one hundred seventy-five degrees Fahrenheit

Product Highlights

This male connector is suited for various applications, providing reliability in fluid transfer systems.

Product Information

Standard Information

• Brand: Legris
• Part Number: 102104215

Technical Specifications

• Thread Type: BSPP
• End Size: 5/16 or 8 mm Tube (f)
• No. of Ends: 2
• Height: 20.500 mm
• Material: Nickel-Plated Brass
• Tube O.D.: 5/16 in, 8.000 mm
• Thread Size: 1/8
• Fitting Angle: Straight
