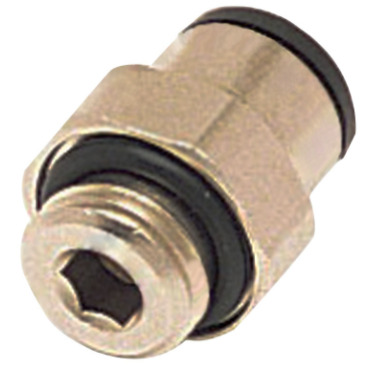

Legris 31010617 Male Connector 6mm O.D. Tubing 3/8 Male BSPP

Product Description

The Legris 31010617 is a male connector designed for six millimeter outer diameter tubing. This fitting features a three eighths inch male BSPP thread. It is suitable for various applications requiring a secure and reliable connection.

• Internal hex design improves assembly in confined spaces
• Maximum working pressure is 290 psi
• Working temperature range from -4 degrees Fahrenheit to 175 degrees Fahrenheit

Product Highlights

This fitting allows for efficient installation and is compatible with different types of tubing.

Product Information

Standard Information

• Fitting Description: Male Connector
• Availability: Ready to Ship, Typically Ships within 24 hours

Technical Specifications

• Tube O.D.: 6.000 mm
• Origin: Plastic Push to Connect Fittings
• No. of Ends: 2
• Fitting Angle: Straight
• Hex Size: 20 mm
• Size Type: Metric Tube x BSPP Threads
• Height: 13.000 mm
• Thread Size: 3/8
• Thread Type: BSPP
• End Types: Tubing & BSPP
• End Size: 6 mm Tube (f)
• Material: Nickel-Plated Brass
• Body Material: Nickel-Plated Brass
• Weight: 0.033 LB
• EAN or UPC: 820099206202
