Legris 31010613 Male Connector - Push-to-Connect Fittings

Product Description

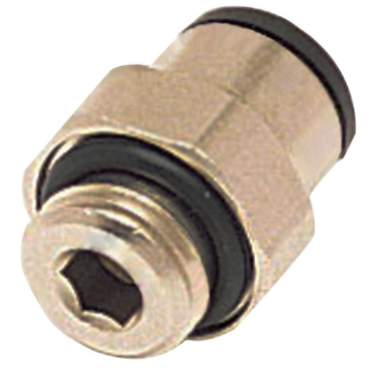

The Legris 31010613 is a male connector designed for six millimeter outer diameter tubing. This connector features compatibility with one-fourth male BSPP threads, making it suitable for various applications.

• Internal hex for easy assembly in tight spaces.
• Maximum working pressure of 290 psi.
• Temperature rating from negative four degrees Fahrenheit to one hundred seventy-five degrees Fahrenheit.

Product Highlights

This fitting is ideal for connecting plastic tubing securely and efficiently. It is effective in both pneumatic and fluid transfer systems.

Product Information

Standard Information

• End Size: 6 mm Tube(f)
• End Types: Tubing & BSPP

Technical Specifications

• Thread Size: 1/4
• Height: 12.500 mm
• Hex Size: 16 mm
• Fitting Description: Male Connector
• Thread Type: BSPP
• Material: Nickel-Plated Brass
• Tube O.D.: 6.000 mm
• No. of Ends: 2
• Fitting Angle: Straight
• Weight: 0.024 LB
• EAN or UPC: 820099206011
