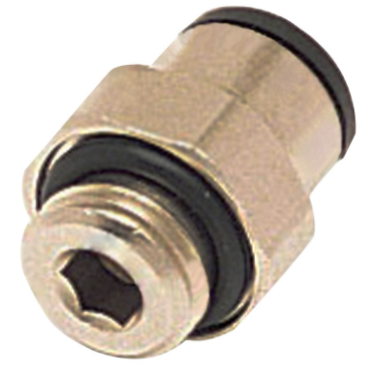

Legris 31010413 Male Connector 4mm O.D. Tubing 1/4 Male BSPP

Product Description

The Legris 31010413 is a male connector designed for use with four millimeter outer diameter tubing. This connector features internal hex design to facilitate assembly in tight spaces. It’s suitable for various applications where reliable connections are essential.

• Fits 4mm tubing with 1/4 Male BSPP thread
• Max pressure rating of 290 psi
• Temperature range from -4 °F to 175 °F

Product Highlights

This male connector is efficient for use in pneumatic systems and fluid handling. It is constructed from nickel-plated brass, ensuring durability and resistance to corrosion.

Product Information

Standard Information

• Part Number: 31010413
• Brand: Legris

Technical Specifications

• End Size: 5/32 or 4 mm Tube (f)
• Fitting Description: Male Connector
• Thread Size: 1/4
• Origin: Plastic Push to Connect Fittings
• Hex Size: 16 mm
• Tube O.D.: 4.000 mm, 5/32 in
• Size Type: Hybrid Sizes
• Thread Type: BSPP
• Body Material: Nickel-Plated Brass
• Fitting Angle: Straight
• Number of Ends: 2
• End Types: Tubing & BSPP
• Height: 10.500 mm
• Weight: 0.024 LB
• EAN or UPC: 820099205304
