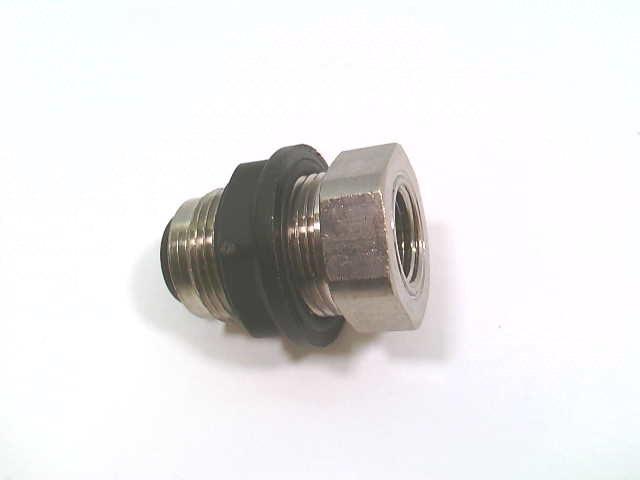

Legris 30365611 Push to Connect Fitting 290 psi 1/4 NPT(f) 1/8 Tube

Product Description

The Legris 30365611 is a push-to-connect fitting designed for efficient fluid transfer. This fitting can withstand a maximum working pressure of two hundred ninety psi. It operates effectively across a working temperature range from negative four degrees Fahrenheit to one hundred seventy-five degrees Fahrenheit.

• Fitting is constructed from nickel-plated brass
• Vacuum rating is twenty-eight inches of mercury
• Compatible with 1/8 inch tubing

Product Highlights

This product is ideal for various applications, particularly in plumbing and HVAC systems, where reliability and durability are critical.

Product Information

Standard Information

• Brand: Legris
• Part Number: 30365611

Technical Specifications

• Fitting Angle: Straight
• Height: 28.500 mm
• Thread Size: 1/4
• Fitting Description: Female Bulkhead Connector
• Tube O.D.: 1/8 in
• No. of Ends: 2
• End Size: 1/4 NPT(f), 1/8 Tube
• Body Material: Nickel-Plated Brass
• Thread Type: NPT
• End Types: Tubing & NPT
• Origin: Plastic Push to Connect Fittings
• Weight: 0.076 LB
• EAN or UPC: 820099718576
