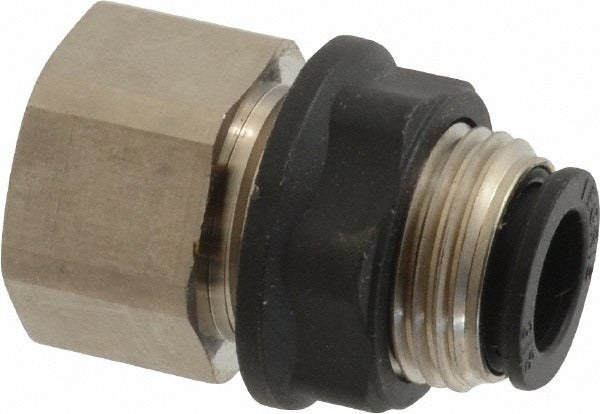

Legris 3036 60 14 Female Bulkhead Tube Fitting 3/8in

Product Description

The LEGRIS 3036 60 14 is a push-to-connect female bulkhead tube fitting designed for quick, tool-free pneumatic and fluid line connections through panel walls or bulkheads. Constructed from nickel-plated brass, this fitting accepts 3/8 inch OD tubing and provides a 1/4 inch NPT female thread connection. It is rated to 290 psi maximum working pressure and operates across a temperature range of -4 degrees F to 175 degrees F, making it suitable for compressed air, inert gas, and compatible fluid systems. A nitrile O-ring provides the primary seal. Plumbers, pipefitters, and pneumatic systems technicians install this fitting in equipment panels, enclosures, and manifold assemblies where a through-panel tube connection is required.

This fitting is used in residential and commercial applications where pneumatic tubing must pass through a bulkhead, panel, or partition. Typical installation scenarios include compressed air distribution systems, fluid handling equipment, HVAC control pneumatics, and industrial machinery enclosures. The push-to-connect design allows fast tube insertion and secure retention without ferrules or wrenches, reducing installation time on multi-connection assemblies.

Key Features

• Push-to-connect design for tool-free tube insertion and removal
• Nickel-plated brass construction for corrosion resistance
• 290 psi maximum working pressure rating
• Operating temperature range of -4 degrees F to 175 degrees F
• 1/4 inch NPT female thread for standard pipe thread connections
• Nitrile O-ring seal for reliable leak-free performance

Compatibility

Designed as an OEM-style replacement or upgrade fitting for pneumatic and fluid systems using 3/8 inch OD tubing with 1/4 inch NPT female bulkhead connections.

Installation Notes

Installation is typically performed by licensed plumbers, pipefitters, or pneumatic systems technicians. Depressurize and isolate the system completely before removing or installing any fittings. Ensure the mating NPT threads are clean and apply appropriate thread sealant per the system fluid compatibility requirements. Verify that tubing OD is within the accepted range and that the tube end is cut square and deburred before insertion into the push-to-connect collar.
