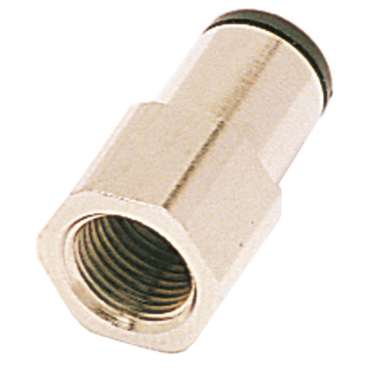

Legris 30145311 Straight Female Connector 1/8 NPT x 1/8 Tubing

Product Description

The Legris Straight Female Connector, MPN 30145311, is designed for reliable connections in various fluid systems. This fitting offers a secure interface for 1/8 inch tubing and NPT, designed to handle demanding applications.

• Max. working pressure: 290 psi
• Working temperature: -4 °F to 175 °F
• Vacuum rating: 28 Hg

Product Highlights

This connector is made from nickel-plated brass for durability and performance. It features a straight fit design that simplifies installation and reduces friction loss in systems.

Product Information

Standard Information

• Brand: Legris
• Part Number: 30145311

Technical Specifications

• Body Material: Nickel-Plated Brass
• Fitting Description: Straight Female Connector
• No. of Ends: 2
• Fitting Angle: Straight
• End Size: 1/8 Tube(f)
• Origin: Plastic Push to Connect Fittings
• Thread Type: NPT
• Size Type: Fractional Sizes
• Thread Size: 1/8
• End Types: Tubing & NPT
• Tube O.D.: 1/8 in
• Weight: 0.025 LB
• EAN or UPC: 820099200316
