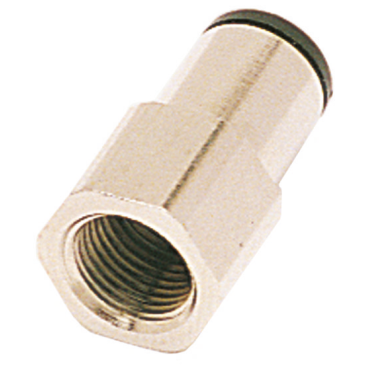

Legris 30140411 Straight Female Connector 1/8 NPT x 5/32 Tubing

Product Description

The Legris 30140411 is a straight female connector designed for efficient connection in pneumatic systems. This fitting is suitable for use with 1/8 NPT and 5/32 tubing. The unit can handle a maximum working pressure of 290 psi, making it reliable under various conditions.

• Material: Nickel-Plated Brass
• Working temperature range: -4 °F to 175 °F
• Vacuum rating of 28 Hg

Product Highlights

This connector is ideal for various applications in HVAC and plumbing systems. Its durable construction ensures longevity and robustness in demanding environments.

Product Information

Standard Information

• Brand: Legris
• Part #: 102080928

Technical Specifications

• Material: Nickel-Plated Brass
• Fitting Description: Straight Female Connector
• Fitting Angle: Straight
• End Types: Tubing & NPT
• Body Material: Nickel-Plated Brass
• Origin: Plastic Push to Connect Fittings
• Thread Type: NPT
• Thread Size: 1/8
• No. of Ends: 2
• End Size: 5/32 or 4 mm Tube(f)
• Size Type: Fractional Sizes
• Tube O.D.: 4.000 mm, 5/32 in
• Weight: 0.15 LB
• EAN or UPC: 820099200033
