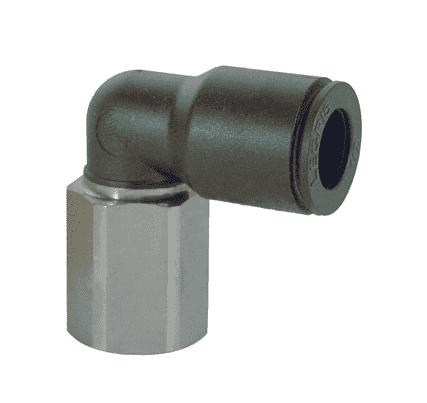

Legris 30090811 Female Elbow 90° 5/16 in Tube Outer Diameter

Product Description

Legris 30090811 is a female elbow fitting designed for 90° connections in pneumatic systems. This fitting is suitable for semirigid plastic tubing and is ideal for applications where quick assembly is necessary. The body is made from durable glass-filled nylon, while the threaded components feature nickel-plated brass for enhanced durability. Each fitting includes a patented stainless steel gripping ring that ensures a secure and leak-free connection. No special tools are required for installation or removal, making it user-friendly.

• 90° fitting angle for optimal connection.
• Constructed for easy push-to-connect functionality.
• Compatible with multiple types of tubing, including nylon and Teflon.

Product Highlights

This fitting provides efficient assembly and disassembly. The design prevents deformation of the tubing. Additionally, it features a low-force release system, allowing for seamless transitions between connections.

Product Information

Standard Information

• Brand: Legris
• Part Number: 30090811

Technical Specifications

• Fitting Angle: 90°
• End Size: 5/16 or 8 mm Tube(f)
• Material: Nickel-Plated Brass, Nylon
• End Types: Tubing & NPT
• Thread Type: NPT
• Thread Size: 1/8
• No. of Ends: 2
• Height: 1.120 inches
• Body Material: Nickel-Plated Brass
• Size Type: Fractional Sizes
• Fitting Description: 90° Female Elbow
• Hex Size: 13 mm
• Length: 0.910 inches
• Tube O.D.: 5/16 inches
• Weight: 0.031 LB
• EAN or UPC: 820099199795
