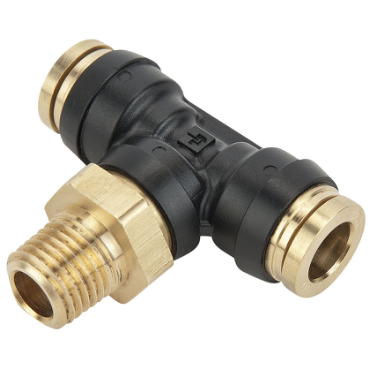

Legris 172PTCNS-3-2 PTC Composite Push-In Air Brake Fittings

Product Description

The Legris 172PTCNS-3-2 PTC Composite Push-In Air Brake Fitting provides a streamlined connection for flexible tubing in automotive and truck applications. This fitting allows for a secure, leak-free connection by simply pushing the tubing in, while removing it is easy with the plastic release cap. The design enables a quick connection and disconnection requiring minimal force and no tools.

• Push-to-connect design for quick connections
• Constructed with glass-reinforced nylon and nickel-plated brass
• Compatible with fractional inch tubing and various temperature ranges

Product Highlights

This fitting is designed for efficient use in a range of applications, ensuring a reliable and durable option for air brake systems.

Product Information

Standard Information

• Brand: Legris
• MPN: 172PTCNS-3-2

Technical Specifications

• Fitting Angle: 90 degrees
• Body Material: Nylon
• Thread Size: 1/8
• Thread Type: NPT
• Number of Ends: 3
• End Types: Tubing & NPT
• Tube O.D.: 3/16 inches
• Max Working Pressure: 250 psi
• Working Temperature: -40 degrees F to 200 degrees F
• Suitable Fluids: Compressed air only
