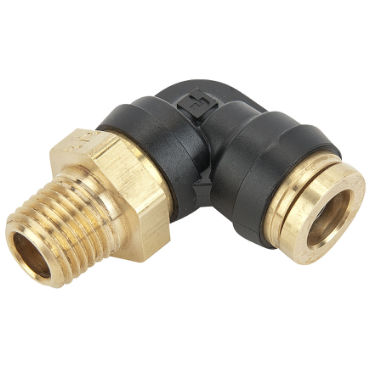

Legris 169PTCNS-5/32-2 PTC Composite Push-In Air Brake Fittings

Product Description

The Legris 169PTCNS-5/32-2 is a push-to-connect fitting designed for quick connections in automotive and truck applications. It allows for easy hose connection via a simple push, ensuring a tight seal that prevents leaks. The fitting is compatible with flexible tubing and can be disconnected by pressing a release cap, eliminating the need for tools.

• 90° Male Elbow
• 5/32 Tube Outer Diameter x 1/8 NPT
• Constructed of durable materials for lasting use

Product Highlights

This fitting is made from glass-reinforced nylon with nickel-plated brass components. It features a Buna-Nitrile seal and is compliant with DOT FMVSS 106 standards. Designed for flexibility, it swivels 360° for easy assembly.

Product Information

Standard Information

• Brand: Legris
• Part Number: 169PTCNS-5/32-2

Technical Specifications

• Max Working Pressure: 250 psi
• Working Temperature: -40 °F to 200 °F
• Suitable Fluids: Compressed air only
• Materials of Construction: Composite body, brass collets, stainless steel tube support, Buna-N o-ring, brass threads
• No. of Ends: 2
• Tube O.D.: 5/32 in
• Thread Size: 1/8
• Fitting Angle: 90°
