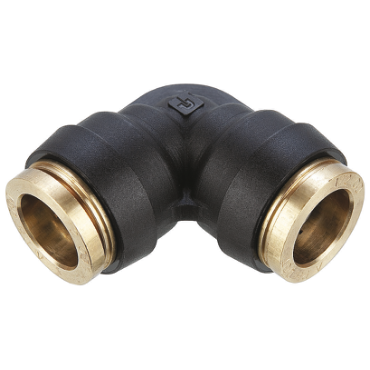

Legris 165PTC-3 PTC Composite Push-In Air Brake Fittings

Product Description

The Legris 165PTC-3 is a PTC Composite Push-In Air Brake fitting designed for quick connections between components and flexible tubing in automotive and truck applications. This fitting connects securely and prevents leaks by simply pushing tubing into it. To disconnect, press the plastic release cap. It allows for easy, tool-free assembly and disassembly.

• 90-degree union elbow design
• Constructed from glass-reinforced nylon
• Suitable for compressed air applications

Product Highlights

This fitting provides reliable performance in various environments, ensuring a sealed fit in both static and dynamic applications.

Product Information

Standard Information

• Brand: Legris
• MPN: 165PTC-3

Technical Specifications

• Max. Working Pressure: 250 psi
• Working Temperature: -40 °F to 200 °F
• Suitable Fluids: Compressed air only
• Body Material: Nylon
• Fitting Angle: 90°
• Tube O.D.: 3/16 in
• No. of Ends: 2
• Size Type: Fractional, Equal Ends
