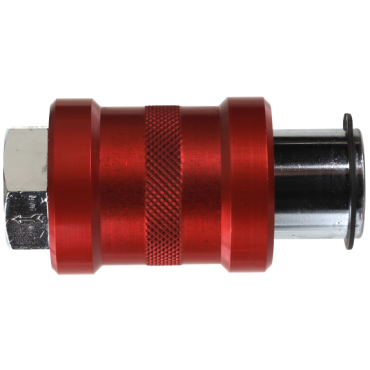

Legris 06690410 Slide Valve 230 psi (1/8 BSPP Female)

Product Description

The Legris 06690410 is a slide valve designed for effective air line isolation. This valve allows users to vent system air to the atmosphere. By sliding the sleeve, air can be directed through the valve or shut off entirely. This product features a compact design and can easily be integrated into existing circuits.

• Lockable slide valve with two ends.
• Both ends are 1/8 BSPP female.
• Can exhaust air to the atmosphere.

Product Highlights

This slide valve provides a simple method for controlling airflow in pneumatic systems. Its design is suitable for various industrial applications.

Product Information

Standard Information

• Brand: Legris
• Part Number: 06690410

Technical Specifications

• Working Pressure (Max): 230 psi
• Body Material: Nickel-Plated Brass
• Connection Type: Non-Lockable Slide Valve – Double Female
• Seal Material: Buna-N
• Thread Type: BSPP
• Direction of Flow: One-Way
• Thread Size: 1/8 inches
• Sleeve Material: Anodized Aluminum
• Weight: 0.112 LB
• EAN or UPC: 820099148120
