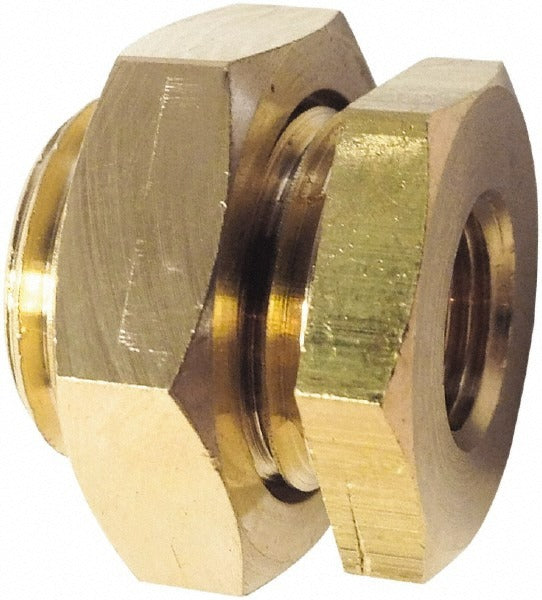

Legris 0117 00 17 Male Female Bulkhead Fitting 3/8 in

Product Description

The LEGRIS 0117 00 17 is a brass male-female bulkhead fitting designed for industrial pipe assemblies requiring a secure panel or wall pass-through connection. Built with a 3/8 inch female BSPP thread on one end and a 3/8 inch male BSPP thread on the other, this fitting handles a maximum working pressure of 1,000 psi and a pressure rating of 3,626 psi at burst. The all-brass construction provides corrosion resistance and durability in demanding fluid and pneumatic systems. Plumbers, pipefitters, and industrial maintenance technicians install this fitting where a line must pass through a bulkhead, panel, or enclosure wall.

This bulkhead fitting suits industrial fluid transfer, compressed air, and hydraulic panel applications where a threaded BSPP pass-through connection is required. The FBSPP x MBSPP configuration allows the fitting to lock into a bulkhead surface from both sides, creating a leak-resistant seal rated for service from -40 degrees F to 302 degrees F. It is appropriate for use in manufacturing, process piping, and mobile equipment applications where panel-mounted plumbing connections are standard practice.

Key Features

• 3/8 inch female BSPP x 3/8 inch male BSPP thread configuration for straight bulkhead pass-through
• Maximum working pressure of 1,000 psi with a burst pressure rating of 3,626 psi
• All-brass construction for corrosion resistance in fluid and pneumatic service
• Wide operating temperature range: -40 degrees F to 302 degrees F
• Compact form factor suitable for panel-mount installations in tight enclosures

Compatibility

Designed for use in industrial pipe systems requiring a 3/8 inch FBSPP x MBSPP bulkhead fitting connection. Consult system documentation to confirm thread form and pressure requirements before installation.

Installation Notes

Installation should be performed by a qualified pipefitter or industrial maintenance technician familiar with BSPP threaded fittings. Shut off and depressurize the system fully before removing or installing any bulkhead fitting. Apply thread sealant appropriate for BSPP parallel threads, as BSPP threads rely on a face seal or sealant rather than thread taper for pressure-tight connections. Verify that the bulkhead panel thickness and hole diameter are compatible with this fitting before assembly.
