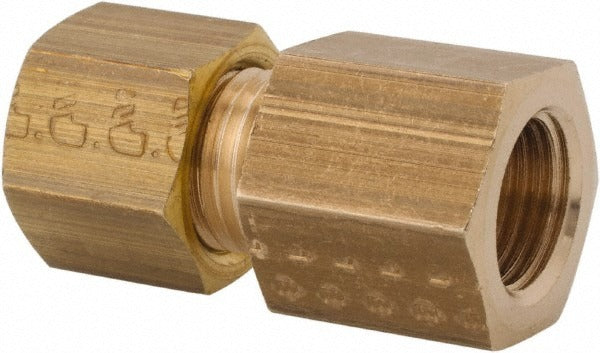

Legris 0114 06 13 Compression Tube Connector 1/4 Bspp

Product Description

The LEGRIS 0114 06 13 is a brass compression tube connector designed for fluid and pneumatic line connections in industrial and mechanical systems. It features a compression-style tube end on one side and a 1/4-inch BSPP threaded end on the other, allowing a direct transition between tube and threaded pipe fittings. Rated to 1000 psi maximum working pressure, it handles a temperature range from -40 degrees F to 212 degrees F (100 degrees C). The brass construction provides corrosion resistance suitable for use with air, water, and a broad range of compatible media. Licensed plumbers, pipefitters, and industrial maintenance technicians are the primary installers of this type of fitting.

This connector is suited for industrial fluid distribution systems, pneumatic circuits, and process piping where a compression-to-BSPP transition is required. The BSPP (British Standard Parallel Pipe) thread standard is common in European-specification equipment and machinery imported into North American facilities. The 6 mm tube outside diameter on the compression side matches standard metric tubing used in pneumatic and hydraulic control circuits. This fitting meets ATEX, CNOMO E07.21.115N, PED, Prop 65, REACH, and RoHS standards, making it appropriate for installations where those certifications are required.

Key Features

• Compression x BSPP end connections for tube-to-threaded-pipe transitions
• 1/4-inch BSPP thread size with 6 mm tube outside diameter on compression end
• Rated to 1000 psi maximum working pressure
• Operating temperature range: -40 degrees F to 212 degrees F
• Brass construction for corrosion resistance and durability
• Meets ATEX, CNOMO E07.21.115N, PED, Prop 65, REACH, and RoHS certifications

Compatibility

Designed for use with 6 mm OD metric compression tubing and 1/4-inch BSPP threaded ports in industrial fluid and pneumatic systems where BSPP thread-standard equipment is specified.

Installation Notes

Installation should be performed by a qualified pipefitter, plumber, or industrial maintenance technician familiar with compression fittings and BSPP thread standards. Depressurize and isolate the line completely before removing or installing any fitting. Do not overtighten the compression nut, as brass fittings can be damaged by excess torque. Verify that the tube outside diameter matches the 6 mm compression seat before assembly to ensure a leak-free connection.
