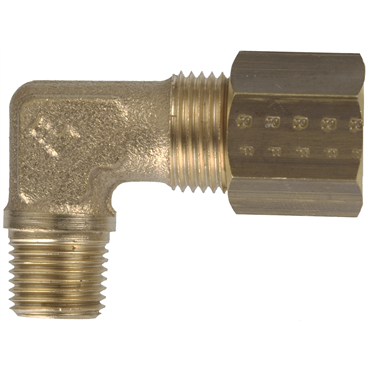

Legris 01091217 Male Elbow Compression Fitting 90 Degree R3/8

Product Description

Legris 01091217 is a male elbow compression fitting designed for connecting tubes securely at a 90-degree angle. It is suitable for use with twelve millimeter tubes and features a three-eighths BSPT threaded end. This fitting is made from durable brass material, ensuring longevity and resistance to corrosion.

• 90-degree elbow for optimized flow direction
• Designed for 12 mm tube outer diameter
• Features R3/8 BSPT threaded end

Product Highlights

This fitting is ideal for plumbing applications where space is limited, allowing for a tight, reliable connection even in challenging installations.

Product Information

Standard Information

• Brand: Legris
• Part Number: 102095072

Technical Specifications

• Weight: 0.169 lb
• Tube Outer Diameter: 12 mm
• Material: Brass
• Center to End of Thread: 27 mm
• Fitting Angle: 90°
• Thread Size: 3/8
• End Size: R3/8
• End Types: Compression & BSPT
• Compression Nut Hex Size: 22 mm
• Center to Edge of Nut: 30 mm
• Fitting Type: Elbow
• Across Wrench Flats: 15 mm
• EAN or UPC: 820099100135
