Legris 0109 08 17 Compression Male Elbow 3/8 Bspt

Product Description

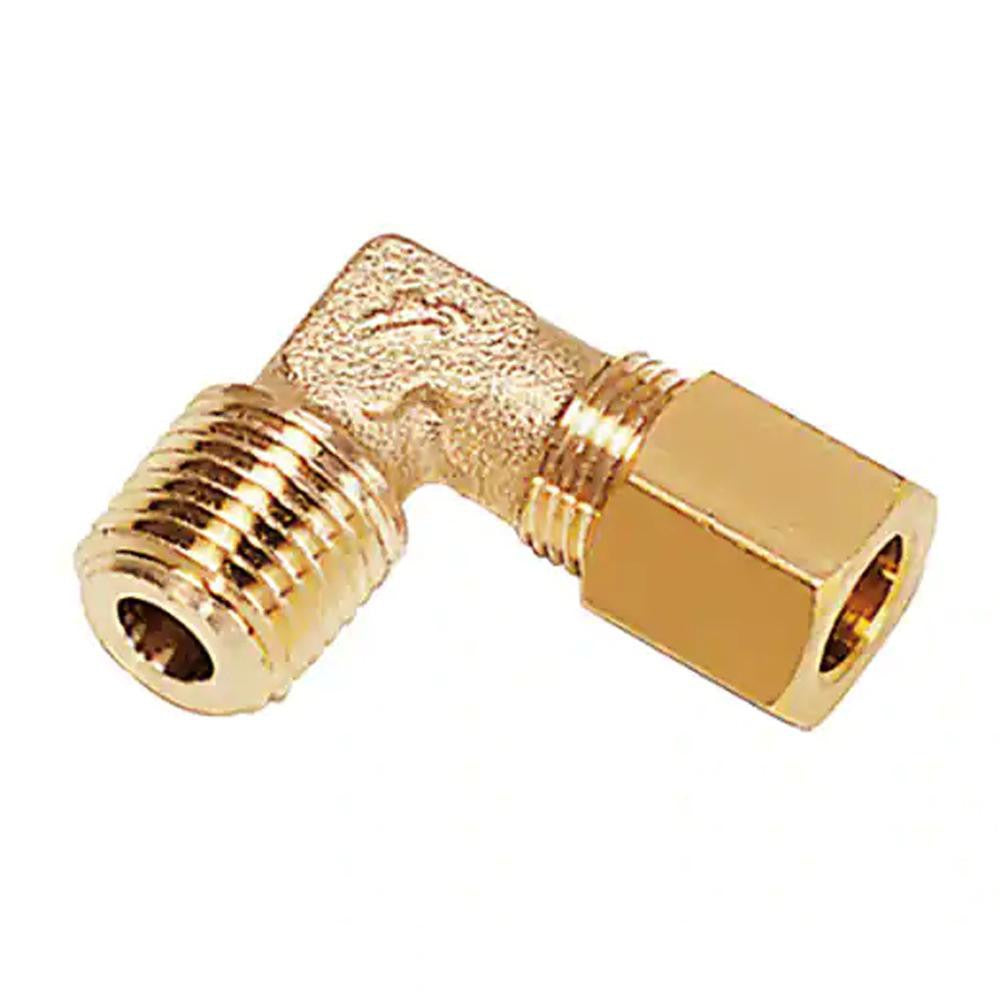

The LEGRIS 0109 08 17 is a brass compression tube male elbow fitting designed to create a reliable, leak-resistant 90-degree connection between a compression tube and a male BSPT threaded port. With a 3/8 inch thread size and an 8 mm tube outside diameter, this fitting transitions between metric tube and BSP threaded connections in compressed air, pneumatic, and fluid transfer systems. Rated to 320 psi maximum working pressure and a temperature range of -40 to 210 degrees F, it handles demanding industrial and commercial service conditions. Licensed plumbers, pipefitters, and industrial maintenance technicians install this type of fitting.

This fitting is suited for compressed air distribution lines, pneumatic control circuits, and instrumentation tubing runs where a direction change and a threaded port connection are required in a single component. The brass construction makes it compatible with both dry and lubricated air systems, as well as many water and hydraulic fluid applications within its rated pressure and temperature limits. Its compact elbow geometry helps route tubing in tight panel or manifold installations.

Key Features

• Brass construction for corrosion resistance in air, water, and light fluid service
• Compression x MBSPT end connections for metric tube to BSP threaded port transitions
• 320 psi maximum working pressure for reliable performance in industrial pneumatic systems
• Wide service temperature range: -40 to 210 degrees F
• Compliant with ATEX, CNOMO E07.21.115N, PED, Prop 65, REACH, and RoHS standards

Compatibility

Designed as an OEM-style compression tube male elbow for pneumatic and fluid systems requiring an 8 mm OD tube compression connection to a 3/8 inch BSPT male threaded port.

Installation Notes

Installation should be performed by a licensed pipefitter, plumber, or qualified industrial maintenance technician familiar with compression fitting assembly procedures. Depressurize and isolate the system completely before removing or installing any fittings. Follow the fitting manufacturer's tube insertion and nut torque guidance; do not over-tighten compression nuts, as this can damage the ferrule and compromise the seal. Verify that tube ends are cleanly cut, deburred, and fully seated before tightening.
